Wire Rope End Fittings
Features

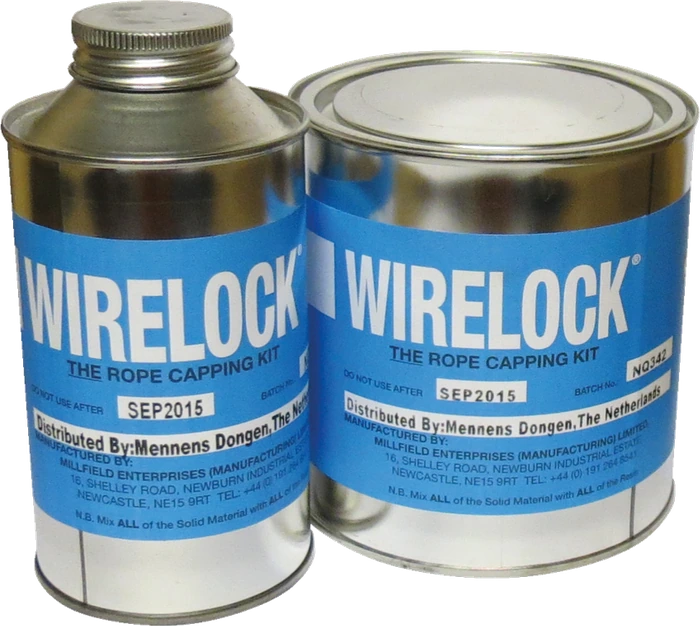

A two‑part resin that caps a rope into a spelter socket without heat. Mix all of the solid material with all of the resin — the kit is proportioned, so a part kit is not a pour.
- 100% termination efficiency.
- For use on 416, 417, 427 and 517 spelter sockets only.
- Operating temperature range −65°F to +240°F (−54°C to +116°C).
- Ideal for on‑site work — no molten metal to handle.
- Improved fatigue life.
- Pour between 48°F and 110°F without a booster pack; one booster pack from 35°F to 48°F, two from 27°F to 35°F.
- Store below 68°F (20°C) in a well ventilated place, out of sunlight and away from any source of ignition.
- Refer to the Crosby Wire Rope End Terminations manual before pouring.
Specifications
Kits
Tap Add on any line to build a quote list.
| Kit Size (cc) | Kits Per Case | Kit Stock No. | Weight Each (lbs.) | Booster Pak Stock No. | Quote |
|---|---|---|---|---|---|
| 100 | 20 | 1039602 | .62 | 1039603 | |
| 250 | 12 | 1039604 | 1.25 | 1039605 | |
| 500 | 12 | 1039606 | 2.54 | 1039607 | |
| 1000 | 12 | 1039608 | 4.59 | 1039609 | |
| 2000 | 6 | 1039610 | 9.00 | 1039611 |
Wirelock is a hazardous material regulated by US DOT, ICAO/IATA and IMO for transport.
How much you need
Read off the rope size and take the next kit up. A 250 cc kit is about a cup.
| Wire Rope Size (in.) | (mm) | Wirelock Required (cc) |
|---|---|---|
| 1/4 | 6-7 | 9 |
| 5/16 | 8 | 17 |
| 3/8 | 9-10 | 17 |
| 7/16 | 11 | 35 |
| 1/2 | 13 | 35 |
| 9/16 | 14 | 52 |
| 5/8 | 16 | 52 |
| 3/4 | 20 | 86 |
| 7/8 | 22 | 125 |
| 1 | 26 | 160 |
| 1-1/8 | 28 | 210 |
| 1-1/4 | 32 | 350 |
| 1-3/8 | 36 | 350 |
| 1-1/2 | 40 | 420 |
| 1-5/8 | 42 | 495 |
| 1-3/4 | 44 | 700 |
| 1-7/8 | 48 | 700 |
| 2 | 51 | 1265 |
| 2-1/8 | 54 | 1265 |
| 2-1/4 | 56 | 1410 |
| 2-3/8 | 60 | 1410 |
| 2-1/2 | 64 | 1830 |
| 2-5/8 | 67 | 1830 |
| 2-3/4 | 70 | 2250 |
| 3 | 76 | 3160 |
| 3-1/4 | 82 | 3795 |
| 3-1/2 | 88 | 4920 |
| 3-3/4 | 94 | 5980 |
| 4 | 102 | 7730 |
Approvals
- Lloyd’s Register of Shipping
- Det Norske Veritas (DNV)
- United States Coast Guard
- Registro Italiano Navale
- Germanischer Lloyd
- United States Navy
- American Bureau of Shipping
- ISO 17.558
- DNV‑OS‑E304
We pour sockets in Hatfield with resin and proof test the finished assembly. Send us the rope and the socket, or let us supply both. More on socket pouring.
