Wire Rope End Fittings
Features
- Swage socket terminations have an efficiency rating of 100% based on the catalog strength of the wire rope.
- Forged from special bar quality carbon steel, suitable for cold forming.
- Hardness controlled by spheroidize annealing.
- The shank carries a machined reduced area equal to the correct after‑swage dimension. Before swaging you can see the step; after swaging the shank is uniform, which is the QUIC‑CHECK® gauge and a permanent visual inspection point.
- Can be stamped for identification after swaging without risk of fractures, following the Wire Rope End Terminations manual.
- Recommended for 6×19 or 6×37 rope, IPS or XIP (EIP), XXIP (EEIP), RRL, fibre core or IWRC.
- Under ASME B30.9, every sling terminated with a swage socket must be proof loaded.
Specifications
Tap Add on any line to build a quote list.

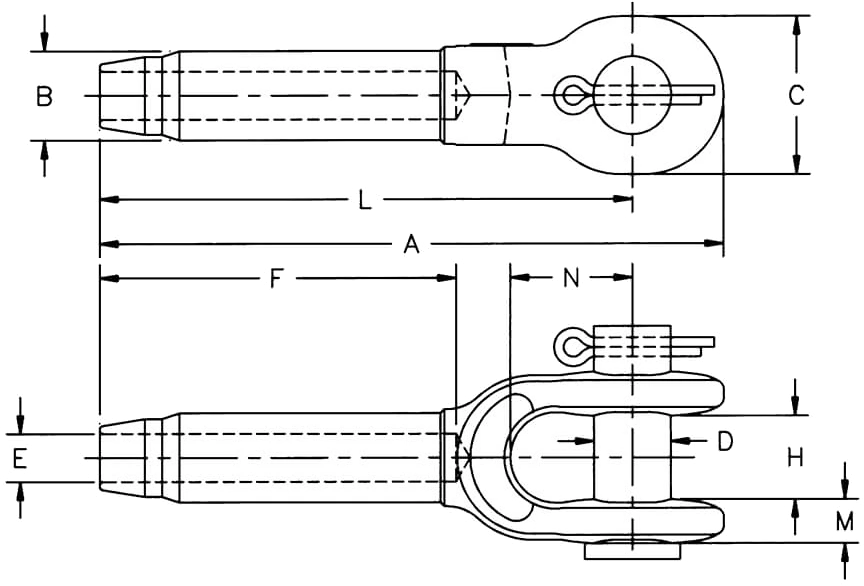

| S‑501 Stock No. | S‑501B Stock No. † | Rope Size (in.) | (mm) | Weight Each (lbs.) | Ultimate Load (t) | Before swage dimensions (in.) | Tol. ± | Max. after swage dim. (in.) | Swager die | Quote | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | H | L | M | N | Description | 500 / 1000 / 1500 ton, 5×7 | |||||||||
| 1039021 | 1054001 | 1/4 | 6 | .52 | 5.4 | 4.78 | .50 | 1.38 | .69 | .27 | 2.19 | .69 | 4.00 | .38 | 1.47 | .06 | .46 | 1/4 Socket | 1192845 | |
| 1039049 | 1054010 | 5/16 | 8 | 1.12 | 11.8 | 6.30 | .78 | 1.62 | .81 | .34 | 3.25 | .80 | 5.34 | .48 | 1.67 | .06 | .71 | 5/16-3/8 Socket | 1192863 | |
| 1039067 | 1054029 | 3/8 | 9-10 | 1.30 | 13.6 | 6.30 | .78 | 1.62 | .81 | .41 | 3.25 | .80 | 5.34 | .48 | 1.67 | .06 | .71 | 5/16-3/8 Socket | 1192863 | |
| 1039085 | 1054038 | 7/16 | 11-12 | 2.08 | 18.1 | 7.82 | 1.01 | 2.00 | 1.00 | .49 | 4.31 | 1.00 | 6.69 | .56 | 1.96 | .06 | .91 | 7/16-1/2 Socket | 1192881 | |
| 1039101 | 1054047 | 1/2 | 13 | 2.08 | 21.3 | 7.82 | 1.01 | 2.00 | 1.00 | .55 | 4.31 | 1.00 | 6.69 | .56 | 1.96 | .06 | .91 | 7/16-1/2 Socket | 1192881 | |
| 1039129 | 1054056 | 9/16 | 14 | 4.67 | 31.8 | 9.54 | 1.27 | 2.38 | 1.19 | .61 | 5.38 | 1.25 | 8.13 | .68 | 2.21 | .06 | 1.16 | 9/16-5/8 Socket | 1192907 | |
| 1039147 | 1054065 | 5/8 | 16 | 4.51 | 34.9 | 9.54 | 1.27 | 2.38 | 1.19 | .68 | 5.38 | 1.25 | 8.13 | .68 | 2.21 | .06 | 1.16 | 9/16-5/8 Socket | 1192907 | |
| 1039165 | 1054074 | 3/4 | 18-20 | 7.97 | 43.5 | 11.61 | 1.56 | 2.75 | 1.38 | .80 | 6.44 | 1.50 | 10.00 | .80 | 2.69 | .06 | 1.42 | 3/4 Socket | 1192925 | |
| 1039183 | 1054083 | 7/8 | 22 | 11.52 | 51.5 | 13.37 | 1.72 | 3.13 | 1.63 | .94 | 7.50 | 1.75 | 11.63 | .94 | 3.20 | .07 | 1.55 | 7/8 Socket | 1192943 | |
| 1039209 | 1054092 | 1 | 24-26 | 17.80 | 71.4 | 15.47 | 2.00 | 3.69 | 1.81 | 1.07 | 8.63 | 2.00 | 13.38 | 1.07 | 3.68 | .08 | 1.80 | 1 Socket | 1192961 | |
| 1039227 | 1054104 | 1-1/8 | 28 | 25.25 | 83.3 | 17.35 | 2.25 | 4.12 | 2.25 | 1.19 | 9.63 | 2.25 | 15.00 | 1.19 | 4.18 | .10 | 2.05 | 1-1/8 Socket | 1192989 | |
| 1039245 | 1054113 | 1-1/4 | 32 | 35.56 | 109 | 19.20 | 2.53 | 4.59 | 2.50 | 1.34 | 10.69 | 2.50 | 16.50 | 1.27 | 4.68 | .10 | 2.30 | 1-1/4 Socket | 1193005 | |
| 1039263 | 1054122 | 1-3/8 | 34-36 | 43.75 | 136 | 21.10 | 2.81 | 5.25 | 2.50 | 1.46 | 11.88 | 2.41 | 18.13 | 1.46 | 5.25 | .10 | 2.56 | 1-3/8 Socket | 1193023 | |
| 1039281 | 1054131 | 1-1/2 | 38-40 | 58.50 | 181 | 23.17 | 3.08 | 5.50 | 2.75 | 1.59 | 12.81 | 3.00 | 19.75 | 1.70 | 5.70 | .10 | 2.81 | 1-1/2 Socket | 1193041 | |
| 1039307 | 1054140 | 1-3/4 | 44 | 88.75 | 228 | 26.70 | 3.40 | 6.25 | 3.50 | 1.87 | 15.06 | 3.50 | 23.00 | 2.11 | 6.67 | .10 | 3.06 | 1-3/4 Socket | 1193069 | |
| 1042767 | 1054159 | 2 | 48-52 | 146.2 | 272 | 31.15 | 3.94 | 7.80 | 3.75 | 2.12 | 17.06 | 4.00 | 26.75 | 1.81 | 8.19 | .10 | 3.56 | 2 Socket | 1193087 | |
† S‑501B is the assembly with bolt, nut and cotter pin. Ultimate loads for 3/4” through 1‑1/4” have been increased to meet the requirement for 8‑strand 2160 grade pendants. Maximum proof load must not exceed 50% of the XXIP catalog breaking strength. Fittings are designed for the exact rope sizes listed.
Ultimate load is a break figure for the fitting, not a working load limit. Apply the design factor the job calls for — 5:1 for most overhead lifting.
We swage in house up to 1‑1/4” and proof test every assembly. Send us the rope and the fitting, or let us supply both.
