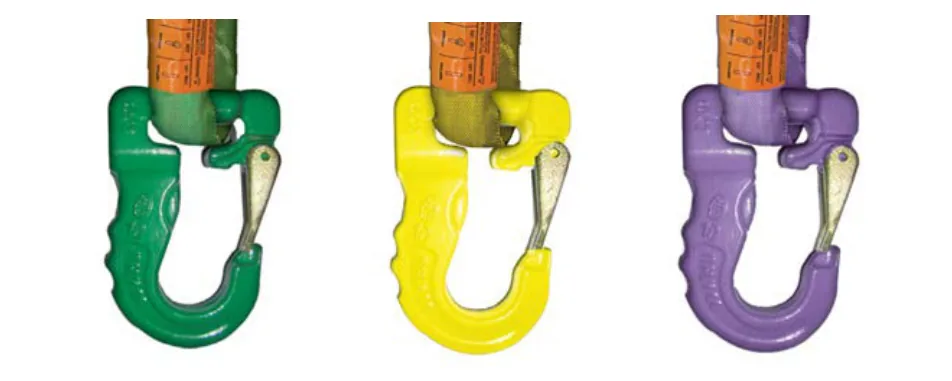

Synthetic Sling Hardware
Features
- Quickly attaches through the latch to both synthetic web and round slings
- Synthetic sling hook color coded matching round sling of the same color
- Field replaceable heavy duty steel latch
- Can be permanently attached or easily removed when not required
- Design factor of 5 to 1.
Specifications
Tap Add on any line to build a quote list.
| Part Number | Color | Working Load Limit (lbs.) | A | B | C | D | G | H | P | T | Weight (lbs.) | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CJ01T1 | Purple | 2,600 | 3.07 | 4.84 | 0.47 | 1.61 | 0.67 | 0.79 | 0.63 | 1.22 | 1.54 | |
| CJ02T2 | Green | 5,300 | 3.58 | 5.83 | 0.75 | 1.77 | 0.83 | 1.02 | 0.67 | 1.57 | 2.65 | |
| CJ03T3** | Yellow | 8,400 | 4.45 | 6.89 | 0.83 | 2.17 | 0.98 | 1.26 | 0.98 | 1.97 | 4.85 | |
| CJ05T3 | Red | 13,200 | 5.21 | 8.78 | 1.57 | 2.76 | 1.42 | 2.34 | 1.42 | 2.34 | 9.90 | |
| CJ08T8 | Blue | 21,200 | 7.28 | 12.48 | 1.97 | 3.94 | 1.77 | 2.48 | 2.17 | 3.15 | 27.50 |
Need a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
