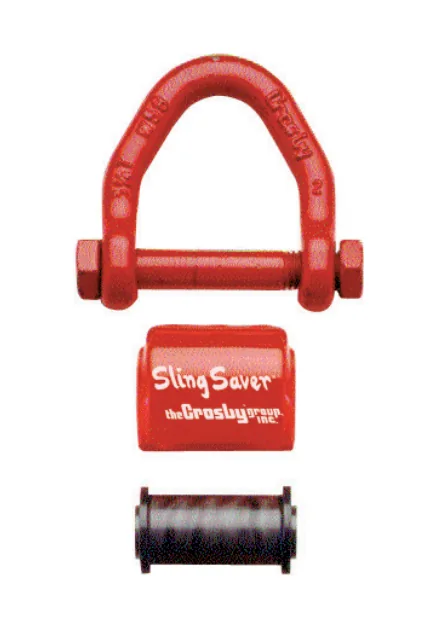

Synthetic Sling Hardware
Features
- All Alloy construction.
- Durable vinyl cover that:
- Protects sling at eye
- Keeps sling positioned correctly on spool.
- Design Factor of 5 to 1.
- Makes a field assembled bridle quick and easy.
- No retaining pin to snag sling material.
- Increased radius of spool gives wider sling bearing surface resulting in an increase area for load distribution, thus:
- Increasing Synthetic Sling efficiency as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved.
- Allowing better load distribution on internal fibers.
Specifications
Tap Add on any line to build a quote list.
| Round Sling Size (Number) | Web Slings Webbing Width (in.) | Eye Width (in.) | Ply | Working Load Limit (Tons) | S-280 Stock Number | Weight Each (lbs.) | Quote |
|---|---|---|---|---|---|---|---|
| 1 & 2 | .65 | .91 | 1.1 | 3-1/4 | 1021681 | 1.5 | |
| 3 | 1.4 | 2.0 | 2.5 | 4-1/2 | 1021690 | 1.9 | |
| 4 | 2.5 | 3.6 | 4.4 | 6-1/4 | 1021700 | 2.9 | |
| 5 & 6 | 3.9 | 5.5 | 6.8 | 8-1/2 | 1021709 | 5.1 |
| Web Sling Eye Width (in.) | Round Sling Size (Number) | Working Load Limit (tons) | S-280 Stock Number | Weight Each (lbs.) | Quote |
|---|---|---|---|---|---|
| 1 | 1 & 2 | 3-1/4 | 1020575 | 1.4 | |
| 1.5 | 3 & 4 | 6-1/2 | 1020584 | 2.2 | |
| 2 | 5 & 6 | 8-3/4 | 1020593 | 3.8 | |
| 3 | 7 & 8 | 12-1/2 | 1020602 | 7.3 | |
| 4 | 9 & 10 | 20-/12 | 1020611 | 15.2 | |
| 5 | 11 & 12 | 35 | 1020620 | 30.8 | |
| 6 | 13 | 50 | 1020629 | 52.0 |
