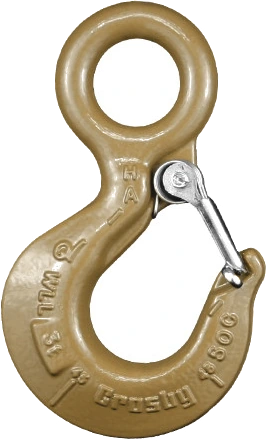

Rigging Hardware
Features
- Available in carbon steel and alloy steel.
- Designed with a 5:1 Design Factor for (Carbon Steel); 4.5:1 Design Factor for 30t - 60t (Alloy Steel).
- Eye hooks are load rated.
- Proper design, careful forging and precision controlled quenched and tempering give maximum strength without excessive weight and bulk.
- Every Crosby Eye Hook has a pre-drilled cam which can be equipped with a latch. Even years after purchase of the original hook, latch assemblies can be added. (See pages 123 - 125)
- Chemical analysis and tensile tests performed on each PIC to verify chemistry and mechanical properties.
- Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for Certification on Cranes available. Certificates available when requested at time of order and may include additional charges.
- Hoist hooks incorporate two types of strategically placed markings forged into the product which address two (2) QUIC-CHECK® features:
- Metric Rated at 5:1 Design Factor for (Carbon Steel); 5:1 Design Factor for 1t - 22t (Alloy Steel).
- Can be proof tested to 2 times the Working Load Limit.
Specifications
Tap Add on any line to build a quote list.
| Working Load Limit (t) Carbon | Alloy | Hook ID Code | Eye Hook Type Carbon L-320C L-320CN S.C. | Carbon G-320CN Galv. | Alloy L-320A L-320AN S.C. | Weight Each (lbs.) | Replacement Latch Kits S-4320 Stock No. | PL Stock No. | SS-4055 Stock No. | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | 1 | †D | 1022205 | 1022208 | 1022380 | .61 | 1096325 | — | — | |
| 1 | 1-1/2 | †F | 1022216 | 1022219 | 1022391 | .89 | 1096374 | — | — | |
| 1-1/2 | 2 | †G | 1022227 | 1022230 | 1022402 | 1.44 | 1096421 | — | — | |
| 2 | 3 | †H | 1022238 | 1022241 | 1022413 | 2.07 | 1096468 | — | — | |
| 3 | 5 | †I | 1022246 | 1022249 | 1022424 | 4.30 | 1096515 | 1092000 | — | |
| 5 | 7 | †J | 1022260 | 1022262 | 1022435 | 8.30 | 1096562 | 1092001 | — | |
| 7-1/2 | 11 | †K | 1022271 | 1022274 | 1022446 | 15.00 | 1096609 | 1092002 | — | |
| 10 | 15 | †L | 1022282 | 1022285 | 1022457 | 20.77 | 1096657 | 1092003 | — | |
| 15 | 22 | †N | 1022293 | 1022296 | 1022468 | 39.50 | 1096704 | 1092004 | — | |
| 20 | 30 | O | 1022302 | — | 1022479 | 60.00 | — | 1093716 | 1090161 | — |
| 25 | 37 | P | — | — | — | 105.00 | — | 1093717 | 1090189 | — |
| 30 | 45 | S | — | — | — | 148.00 | — | 1093718 | 1090189 | — |
| 40 | 60 | T | — | — | — | 228.00 | — | 1093719 | 1090205 | — |

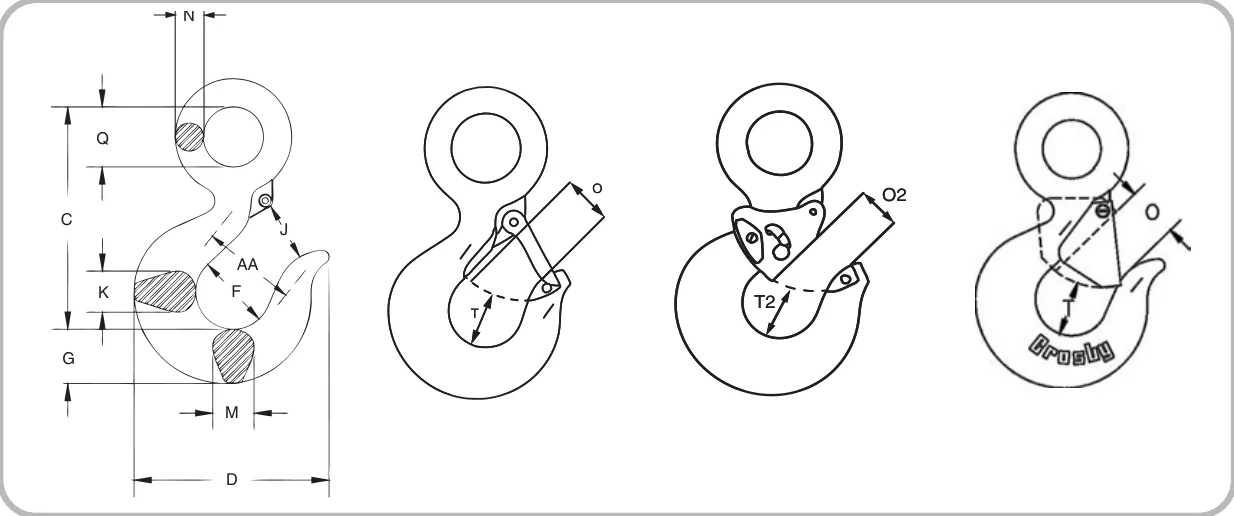

| Hook ID Code* | Dimensions (in.) C | D | F | G | J | K | M | N | O † | O2 †† | Q | T † | T2 †† | AA** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | 3.34 | 2.83 | 1.25 | .73 | .90 | .63 | .63 | .36 | .89 | — | .75 | .87 | — | 1.50 |
| F | 3.81 | 3.11 | 1.38 | .84 | .93 | .71 | .71 | .42 | .91 | — | .91 | .98 | — | 2.00 |
| G | 4.14 | 3.53 | 1.50 | 1.00 | 1.00 | .88 | .88 | .55 | 1.00 | — | 1.13 | 1.03 | — | 2.00 |
| H | 4.69 | 3.97 | 1.63 | 1.13 | 1.13 | .94 | .94 | .58 | 1.09 | — | 1.25 | 1.16 | — | 2.00 |
| I | 5.77 | 4.81 | 2.00 | 1.44 | 1.47 | 1.31 | 1.31 | .72 | 1.36 | 1.00 | 1.56 | 1.53 | 1.50 | 2.50 |
| J | 7.37 | 6.27 | 2.50 | 1.81 | 1.75 | 1.66 | 1.66 | .90 | 1.61 | 1.31 | 2.00 | 1.96 | 1.88 | 3.00 |
| K | 9.07 | 7.45 | 3.00 | 2.25 | 2.29 | 1.88 | 1.63 | 1.11 | 2.08 | 1.81 | 2.44 | 2.47 | 2.25 | 4.00 |
| L | 10.08 | 8.30 | 3.25 | 2.59 | 2.50 | 2.19 | 1.94 | 1.27 | 2.27 | 2.00 | 2.84 | 2.62 | 2.31 | 4.00 |
| N | 12.53 | 10.30 | 4.25 | 3.00 | 3.30 | 2.69 | 2.38 | 1.56 | 3.02 | 2.75 | 3.50 | 2.83 | 2.56 | 5.00 |
| O | 14.06 | 13.62 | 5.00 | 3.62 | 4.00 | 3.00 | 3.00 | 1.75 | 3.25 | — | 3.50 | 3.44 | — | 6.50 |
| P | 18.19 | 14.06 | 5.38 | 4.56 | 4.25 | 3.75 | 3.19 | 2.00 | 3.00 | — | 4.50 | 3.88 | — | 7.00 |
| S | 20.12 | 15.44 | 6.00 | 5.06 | 4.75 | 4.50 | 3.25 | 2.18 | 3.38 | — | 4.94 | 4.75 | — | 8.00 |
| T | 23.72 | 18.50 | 7.00 | 6.00 | 5.75 | 5.50 | 3.91 | 2.53 | 4.12 | — | 5.69 | 5.69 | — | 10.00 |
