Wire Rope End Fittings
Features
- Swage socket terminations have an efficiency rating of 100% based on the catalog strength of the wire rope.
- Forged from special bar quality carbon steel, suitable for cold forming.
- Hardness controlled by spheroidize annealing.
- The shank carries a machined reduced area equal to the correct after‑swage dimension. Before swaging you can see the step; after swaging the shank is uniform, which is the QUIC‑CHECK® gauge and a permanent visual inspection point.
- Can be stamped for identification after swaging without risk of fractures, following the Wire Rope End Terminations manual.
- Recommended for 6×19 or 6×37 rope, IPS or XIP (EIP), XXIP (EEIP), RRL, fibre core or IWRC.
- Under ASME B30.9, every sling terminated with a swage socket must be proof loaded.
Specifications
Tap Add on any line to build a quote list.

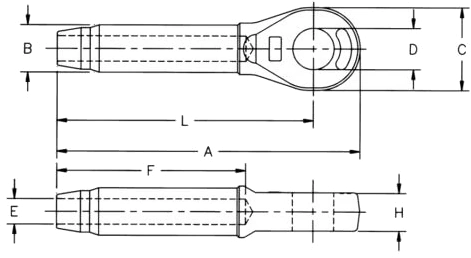

| S‑502 Stock No. | Rope Size (in.) | (mm) | Weight Each (lbs.) | Ultimate Load (t) | Before swage dimensions (in.) | Max. after swage dim. (in.) | Swager die | Quote | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | H | L | Description | 500 / 1000 / 1500 ton, 5×7 | |||||||
| 1039325 | 1/4 | 6 | .33 | 5.4 | 4.28 | .51 | 1.38 | .76 | .27 | 2.19 | .50 | 3.50 | .46 | 1/4 Socket | 1192845 | |
| 1039343 | 5/16 | 8 | .75 | 11.8 | 5.42 | .78 | 1.62 | .88 | .34 | 3.25 | .68 | 4.50 | .71 | 5/16-3/8 Socket | 1192863 | |
| 1039361 | 3/8 | 9-10 | .72 | 13.6 | 5.42 | .78 | 1.62 | .88 | .41 | 3.25 | .68 | 4.50 | .71 | 5/16-3/8 Socket | 1192863 | |
| 1039389 | 7/16 | 11-12 | 1.42 | 18.1 | 6.88 | 1.01 | 2.00 | 1.07 | .49 | 4.31 | .87 | 5.75 | .91 | 7/16-1/2 Socket | 1192881 | |
| 1039405 | 1/2 | 13 | 1.42 | 21.3 | 6.88 | 1.01 | 2.00 | 1.07 | .55 | 4.31 | .87 | 5.75 | .91 | 7/16-1/2 Socket | 1192881 | |
| 1039423 | 9/16 | 14 | 2.92 | 31.8 | 8.59 | 1.27 | 2.38 | 1.28 | .61 | 5.38 | 1.14 | 7.25 | 1.16 | 9/16-5/8 Socket | 1192907 | |
| 1039441 | 5/8 | 16 | 2.85 | 34.9 | 8.59 | 1.28 | 2.38 | 1.28 | .68 | 5.38 | 1.14 | 7.25 | 1.16 | 9/16-5/8 Socket | 1192907 | |
| 1039469 | 3/4 | 18-20 | 5.00 | 43.5 | 10.25 | 1.57 | 2.88 | 1.49 | .80 | 6.44 | 1.33 | 8.63 | 1.42 | 3/4 Socket | 1192925 | |
| 1039487 | 7/8 | 22 | 6.80 | 51.5 | 11.87 | 1.71 | 3.12 | 1.73 | .94 | 7.50 | 1.53 | 10.09 | 1.55 | 7/8 Socket | 1192943 | |
| 1039502 | 1 | 24-26 | 10.40 | 71.4 | 13.56 | 2.00 | 3.62 | 2.11 | 1.07 | 8.63 | 1.78 | 11.50 | 1.80 | 1 Socket | 1192961 | |
| 1039520 | 1-1/8 | 28 | 14.82 | 83.3 | 15.03 | 2.26 | 4.00 | 2.37 | 1.19 | 9.75 | 2.03 | 12.75 | 2.05 | 1-1/8 Socket | 1192989 | |
| 1039548 | 1-1/4 | 32 | 21.57 | 109 | 16.94 | 2.54 | 4.50 | 2.62 | 1.34 | 10.81 | 2.25 | 14.38 | 2.30 | 1-1/4 Socket | 1193005 | |
| 1039566 | 1-3/8 | 34-36 | 28.54 | 136 | 18.59 | 2.82 | 5.00 | 2.62 | 1.46 | 11.88 | 2.29 | 15.75 | 2.56 | 1-3/8 Socket | 1193023 | |
| 1039584 | 1-1/2 | 38-40 | 38.06 | 181 | 20.13 | 3.09 | 5.38 | 2.87 | 1.59 | 12.81 | 2.56 | 17.00 | 2.81 | 1-1/2 Socket | 1193041 | |
| 1039600 | 1-3/4 | 44 | 51.00 | 228 | 23.56 | 3.41 | 6.25 | 3.63 | 1.87 | 15.06 | 3.08 | 20.00 | 3.06 | 1-3/4 Socket | 1193069 | |
| 1042589 | 2 | 48-52 | 89.25 | 272 | 27.13 | 3.96 | 7.25 | 3.88 | 2.12 | 17.06 | 3.31 | 23.00 | 3.56 | 2 Socket | 1193087 | |
Ultimate loads for 3/4” through 1‑1/4” have been increased to meet the requirement for 8‑strand 2160 grade pendants. Maximum proof load must not exceed 50% of the XXIP catalog breaking strength. Fittings are designed for the exact rope sizes listed.
Ultimate load is a break figure for the fitting, not a working load limit. Apply the design factor the job calls for — 5:1 for most overhead lifting.
We swage in house up to 1‑1/4” and proof test every assembly. Send us the rope and the fitting, or let us supply both.
