Rigging Hardware
A swivel hook lets the load turn without winding up the sling. Note which kind you need: a plain swivel is for positioning an unloaded hook, while a bearing swivel turns under load.

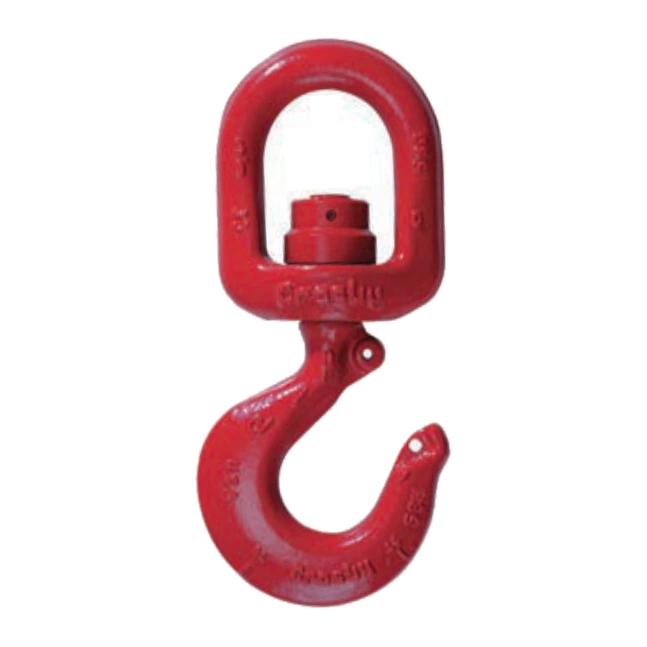

The S-3322B runs on a bearing and is designed to turn with the load on it.
Features
- New anti-friction be.
- Capacities ranging fr.
- Forged - Quenched a.
- Proper design, carefu without excessive we.
- Low profile hook tip d listed and shown on added.
Specifications
Tap Add on any line to build a quote list.

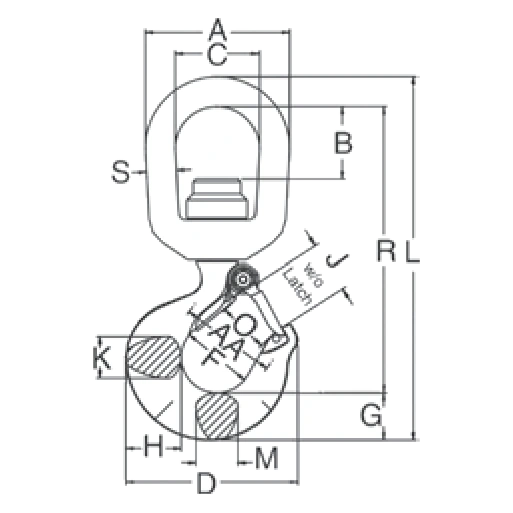

| Working Load Limit (t)* | Hook ID Code* | S-3322B Stock No. | L-3322B Stock No.† | Weight Each (lbs.) | A | B | C | D | F | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | G | 1028605 | — | 2.5 | 3.00 | 1.50 | 1.75 | 3.59 | 1.50 | |
| 3 | H | 1028614 | 1028618 | 3.8 | 3.50 | 1.56 | 2.00 | 4.00 | 1.62 | |
| 5 | I | 1028623 | 1028627 | 7.0 | 4.00 | 1.56 | 2.25 | 4.84 | 2.00 | |
| 7 | J | 1028632 | — | 14.0 | 5.00 | 1.94 | 2.75 | 6.27 | 2.50 | |
| 11 | K | 1028641 | — | 22.3 | 5.62 | 2.05 | 3.12 | 7.54 | 3.00 | |
| 15 | L | 1028650 | — | 36.0 | 7.12 | 3.62 | 4.10 | 8.33 | 3.25 |
Need a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
