A swivel hook lets the load turn without winding up the sling. Note which kind you need: a plain swivel is for positioning an unloaded hook, while a bearing swivel turns under load.

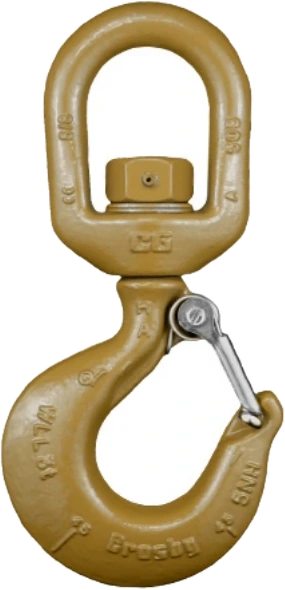

The L-322AN is the plain swivel — it positions the hook before the lift and must not be rotated under load.
Features
- Forged, Quenched & Tempered.
- Suitable for positioning of the hook before the load is lifted.
- Swivel hooks are load rated.
- Proper design, careful forging, and precision controlled quench and tempering gives maximum strength without excessive weight and bulk.
- Low profile hook tip designed to utilize the Crosby S‑4320 or PL‑N latch kit.
- Hooks incorporate QUIC‑CHECK® deformation and angle indicators.
Specifications
Tap Add on any line to build a quote list.
| Working Load Limit (t) Carbon | Alloy | Hook ID Code | L-322CN Stock No. | L-322AN Stock No. | Weight Each (lbs.) | A | B | C | D | F | G | H | J | K | L | M | O † | R | S | AA* | Replacement Latch Stock No. | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 | 1 | D | 1048603 | 1048807 | .75 | 2.00 | .82 | 1.25 | 2.86 | 1.25 | .73 | .81 | .93 | .63 | 5.66 | .63 | .89 | 4.55 | .38 | 1.50 | 1096325 | |
| 1 | 1.5 | F | 1048612 | 1048816 | 1.25 | 2.50 | 1.31 | 1.50 | 3.15 | 1.38 | .84 | .94 | .97 | .71 | 6.71 | .71 | .91 | 5.37 | .50 | 2.00 | 1096374 | |
| 1.5 | 2 | G | 1048621 | 1048825 | 2.25 | 3.00 | 1.50 | 1.75 | 3.59 | 1.50 | 1.00 | 1.16 | 1.06 | .88 | 7.75 | .88 | 1.00 | 6.12 | .63 | 2.00 | 1096421 | |
| 2 | 3 | H | 1048630 | 1048834 | 2.30 | 3.00 | 1.50 | 1.75 | 4.00 | 1.62 | 1.13 | 1.31 | 1.19 | .94 | 8.25 | .94 | 1.09 | 6.50 | .63 | 2.00 | 1096468 | |
| 3 | 5 | I | 1048639 | 1048840 | 4.96 | 3.50 | 1.64 | 2.00 | 4.84 | 2.00 | 1.44 | 1.63 | 1.50 | 1.31 | 9.69 | 1.13 | 1.36 | 7.50 | .75 | 2.50 | 1096515 | |
| 5 | 7 | J | 1048648 | 1048859 | 10.29 | 4.56 | 2.29 | 2.50 | 6.28 | 2.50 | 1.81 | 2.06 | 1.78 | 1.66 | 12.47 | 1.44 | 1.61 | 9.63 | 1.00 | 3.00 | 1096562 | |
| 7.5 | 11 | K | 1048657 | 1048868 | 19.40 | 5.00 | 2.44 | 2.75 | 7.54 | 3.00 | 2.25 | 2.63 | 2.41 | 1.88 | 14.75 | 1.63 | 2.08 | 11.37 | 1.13 | 4.00 | 1096609 | |
| 10 | 15 | L | 1048666 | 1048880 | 23.25 | 5.62 | 2.48 | 3.12 | 8.34 | 3.25 | 2.59 | 2.94 | 2.62 | 2.19 | 16.40 | 1.94 | 2.27 | 12.25 | 1.25 | 4.00 | 1096657 | |
| 15 | 22 | N | 1048675 | 1048889 | 47.00 | 7.10 | 3.76 | 4.10 | 10.34 | 4.25 | 3.00 | 3.50 | 3.41 | 2.69 | 21.34 | 2.38 | 3.02 | 16.71 | 1.50 | 5.00 | 1096704 | |
| – | 30 | O | – | 1048898 | 70.50 | 7.10 | 3.76 | 4.10 | 13.62 | 5.00 | 3.61 | 4.63 | 4.00 | 3.00 | 23.25 | 3.00 | 3.62 | 18.01 | 1.50 | 6.50 | 1090161 |
All carbon swivel hooks have a 5:1 design factor and proof load is 2 times the Working Load Limit. Alloy swivel hooks 1t through 22t have a 4.5:1 design factor and proof load is 2.5 times the Working Load Limit. Alloy swivel hooks of 30t capacity have a 4:1 design factor and proof load is 2 times the Working Load Limit. Dimensions in inches. * Deformation indicators. † Dimensions for hooks 3/4t carbon through 22t alloy are for S‑4320 latch kits; dimensions for 30t alloy hooks are for the 4055 latch kit.
