High Performance Crane Rope
For all cranes and high-performance lifting devices where a non-rotating rope with a high minimum breaking load is required. Recommended for offshore work, deck cranes and marine environments.

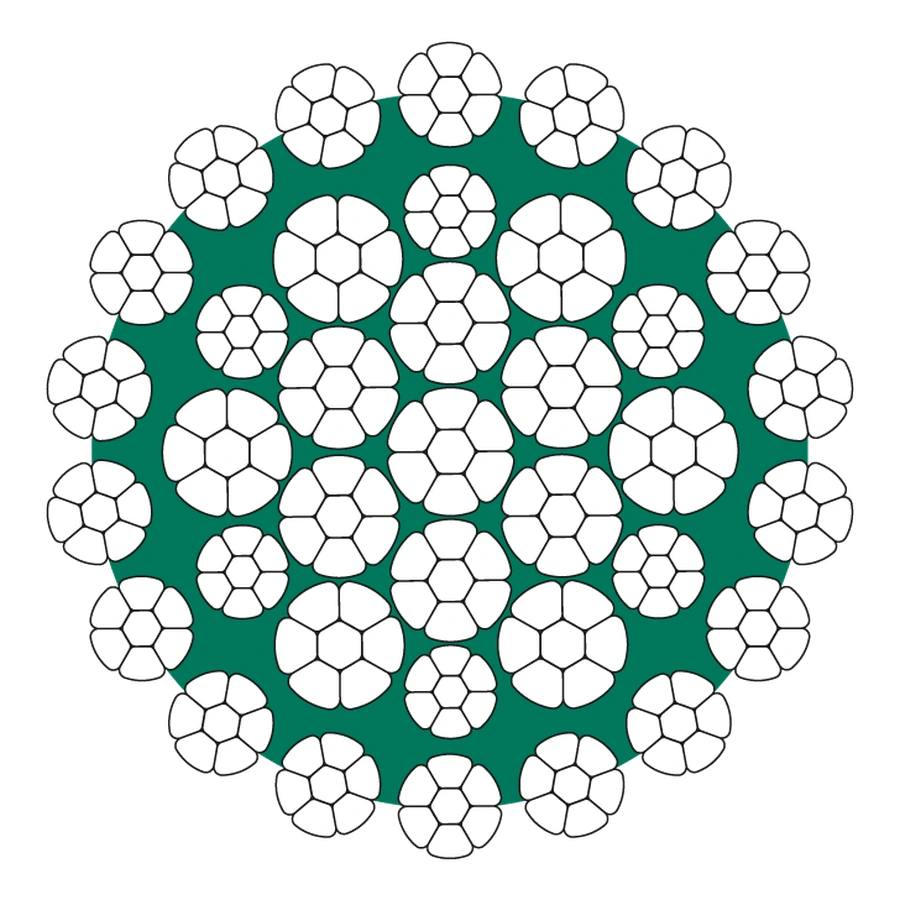

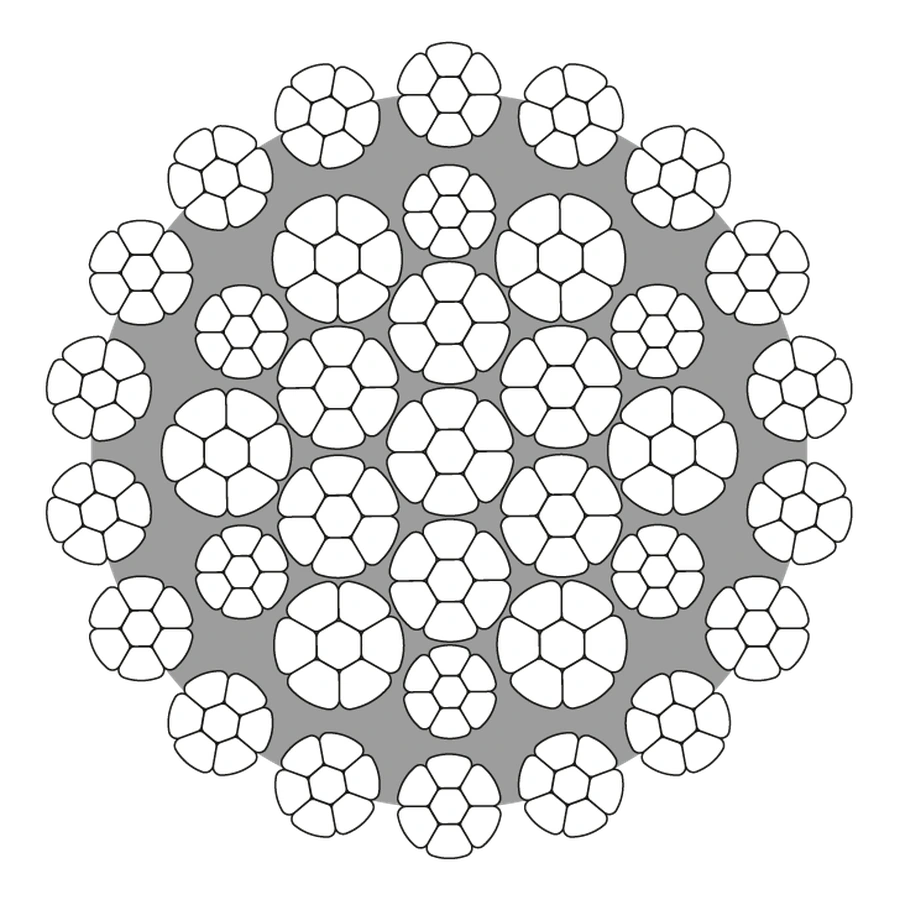

It comes plain or as NR Maxipact PPI, which fills the space between the core and the outer strands with plastic so the strand layers are kept apart. PPI is made from 13 mm up, adds about 1.0% to the weights below, and runs to a lower top temperature — +80°C against +100°C for the plain rope.
Features
- Temperature range of use: −50°C to +100°C
- Temperature range of use for option PPI: −50°C to +80°C
- Option PPI – only available for diameter ≥ 13 mm
- Please add 1.0% on the weight for ropes with PPI
- Available in ordinary lay and Lang’s lay
- Available in right hand and left hand
NR Maxipact is an Oliveira ropeSpecifications
Cut to length and terminated in Hatfield. Call for availability and lead time.
| Diameter | Approximate Weight | Minimum Breaking Force — 1960 N/mm² | Minimum Breaking Force — 2160 N/mm² | ||||
|---|---|---|---|---|---|---|---|
| mm | in. | kg/m | lbs/ft | kN | tons | kN | tons |
| 12.70 | 1/2 | 0.77 | 0.52 | 148.0 | 16.64 | 155.9 | 17.52 |
| 13 | — | 0.82 | 0.55 | 157.8 | 17.73 | 165.7 | 18.62 |
| 14 | — | 0.95 | 0.64 | 183.3 | 20.60 | 192.5 | 21.63 |
| 15 | — | 1.09 | 0.73 | 209.6 | 23.56 | 220.6 | 24.80 |
| 15.88 | 5/8 | 1.20 | 0.81 | 230.0 | 25.85 | 241.0 | 27.09 |
| 16 | — | 1.25 | 0.84 | 239.4 | 26.91 | 251.4 | 28.26 |
| 17 | — | 1.40 | 0.94 | 269.7 | 30.32 | 283.4 | 31.86 |
| 18 | — | 1.57 | 1.06 | 302.5 | 34.01 | 317.7 | 35.71 |
| 19 | 3/4 | 1.76 | 1.18 | 338.9 | 38.09 | 255.9 | 40.00 |
| 20 | — | 1.94 | 1.30 | 374.2 | 42.06 | 393.0 | 44.17 |
| 21 | — | 2.13 | 1.43 | 412.2 | 46.33 | 432.9 | 48.65 |
| 22 | — | 2.34 | 1.57 | 452.0 | 50.81 | 474.7 | 53.35 |
| 22.23 | 7/8 | 2.37 | 1.59 | 458.0 | 51.48 | 481.0 | 54.07 |
| 23 | — | 2.56 | 1.72 | 494.8 | 55.62 | 519.6 | 58.41 |
| 24 | — | 2.79 | 1.87 | 540.3 | 60.73 | 567.4 | 63.78 |
| 25 | — | 3.04 | 2.04 | 587.1 | 65.99 | 616.6 | 69.30 |
| 25.40 | 1 | 3.08 | 2.07 | 595.4 | 66.93 | 625.3 | 70.29 |
| 26 | — | 3.27 | 2.20 | 634.2 | 71.29 | 666.1 | 74.87 |
| 27 | — | 3.54 | 2.38 | 683.6 | 76.84 | 717.9 | 80.69 |
| 28 | — | 3.80 | 2.55 | 734.0 | 82.51 | 770.9 | 86.65 |
| 28.58 | 1 1/8 | 3.98 | 2.67 | 768.3 | 86.36 | 806.8 | 90.69 |
| 29 | — | 4.07 | 2.73 | 790.0 | 88.80 | 824.4 | 92.67 |
| 30 | — | 4.39 | 2.95 | 846.3 | 95.13 | 888.8 | 99.90 |
| 31.75 | 1 1/4 | 4.84 | 3.25 | 930.0 | 104.54 | 975.0 | 109.59 |
| 32 | — | 4.98 | 3.34 | 959.6 | 107.87 | 1,007.8 | 113.28 |
| 34 | — | 5.59 | 3.75 | 1,079.3 | 121.32 | 1,133.0 | 127.35 |
| 34.93 | 1 3/8 | 5.94 | 3.99 | 1,146.8 | 128.91 | 1,202.0 | 135.11 |
| 36 | — | 6.31 | 4.24 | 1,221.5 | 137.30 | 1,282.8 | 144.19 |
| 38 | 1 1/2 | 7.01 | 4.71 | 1,352.4 | 152.01 | 1,418.4 | 159.43 |
| 40 | — | 7.74 | 5.20 | 1,495.0 | 168.05 | 1,569.0 | 176.36 |
| 41.28 | 1 5/8 | 8.30 | 5.58 | 1,602.1 | 180.08 | 1,682.5 | 189.12 |
| 42 | — | 8.52 | 5.72 | 1,645.2 | 184.92 | 1.730.0 | 194.46 |
| 44 | — | 9.37 | 6.30 | 1,818.6 | 204.42 | 1.909.9 | 214.46 |
| 44.45 | 1 3/4 | 9.51 | 6.39 | 1,838.6 | 206.67 | 1.928.2 | 216.74 |
| 46 | — | 10.33 | 6.94 | 1,995.7 | 224.33 | 2,095.8 | 235.58 |
| 47.63 | 1 7/8 | 10.86 | 7.29 | 2,095.0 | 235.49 | 2,190.0 | 246.17 |
| 48 | — | 11.32 | 7.61 | 2,184.3 | 245.52 | 2,293.9 | 257.84 |
| 50 | — | 12.03 | 8.09 | 2,331.7 | 262.10 | 2,451.2 | 275.52 |
| 50.80 | 2 | 12.42 | 8.34 | 2,400.1 | 269.78 | 2,517.2 | 282.93 |
Tons are US tons of 2,000 lbs. 1960 and 2160 N/mm² are the wire tensile grades; both are stocked to order. Metric and imperial columns are the same rope, not two products.
