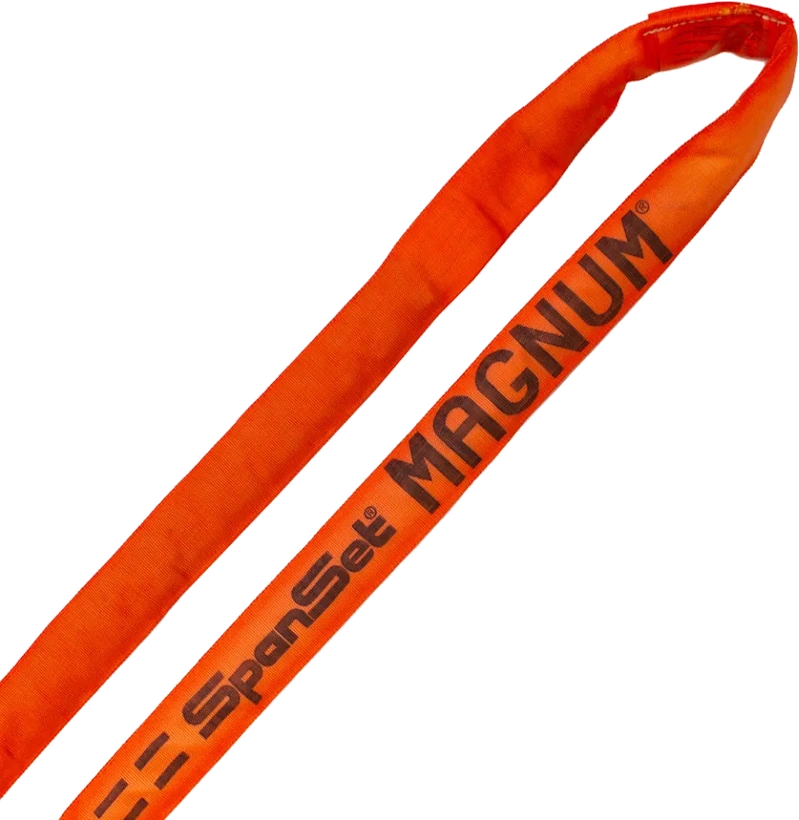

Endless Round Slings
A round sling carries its load on an endless core of fibre inside a woven cover. Nothing is spliced and nothing is stitched through the core, so the whole cross‑section carries the lift.
The Magnum is the lighter of the two high performance lines we stock. For 20,000 lb and up in a slimmer body, see the Magnum Force.
Features
- Eight times stronger than steel wire rope of the same weight.
- High performance fibre core in a woven protective cover.

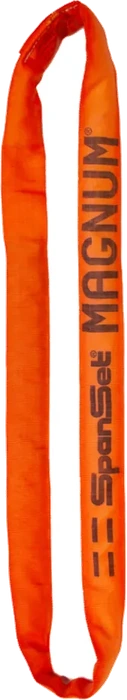

- Working load limit woven into the sleeve, so the capacity is readable even on a dirty sling.
- Capacities from 10,000 lb to 250,000 lb.
- Lengths to 20 ft on the smallest sizes and to 98 ft on the largest.
- Lies against a tighter edge radius than a conventional polyester sling.
- Repairable on the manufacturer’s inspection.
Specifications
Tap Add on any line to build a quote list.
| Part Number | Vertical Capacity (lbs.) | Choker Capacity (lbs.) | Basket Capacity (lbs.) 90° | Basket Capacity (lbs.) 60° | Basket Capacity (lbs.) 45° | Weight per Foot (lbs.) | Minimum Length (ft.) | Maximum Length (ft.) | Minimum Bow Diameter (in.) | Approx. Width at Load (in.) | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M10 CL | 10,000 | 8,000 | 20,000 | 17,320 | 14,140 | 0.20 | 10000 | 20 | 8000 | 20000 | |
| M20 CL | 20,000 | 16,000 | 40,000 | 34,640 | 28,280 | 0.32 | 20000 | 20 | 16000 | 40000 | |
| M25 CL | 25,000 | – | 50,000 | 43,300 | 35,350 | 0.36 | 25000 | 50 | 2000 | 50000 | |
| M30 CL | 30,000 | 24,000 | 60,000 | 51,960 | 42,420 | 0.42 | 30000 | 50 | 24000 | 60000 | |
| M40 CL | 40,000 | 32,000 | 80,000 | 69,280 | 56,560 | 0.54 | 40000 | 50 | 32000 | 80000 | |
| M50 CL | 50,000 | 40,000 | 100,000 | 86,600 | 70,700 | 0.65 | 50000 | 50 | 40000 | 100000 | |
| M60 CL | 60,000 | 48,000 | 120,000 | 103,920 | 84,840 | 0.72 | 60000 | 50 | 48000 | 120000 | |
| M70 CL | 70,000 | 56,000 | 140,000 | 121,240 | 98,980 | 0.85 | 70000 | 50 | 56000 | 140000 | |
| M75 CL | 75,000 | 60,000 | 150,000 | 129,900 | 106,050 | 0.89 | 75000 | 50 | 60000 | 150000 | |
| M80 CL | 80,000 | 64,000 | 160,000 | 138,560 | 113,120 | 0.97 | 80000 | 50 | 64000 | 160000 | |
| M90 CL | 90,000 | 72,000 | 180,000 | 155,880 | 127,260 | 1.11 | 90000 | 50 | 72000 | 180000 | |
| M100 CL | 100,000 | 80,000 | 200,000 | 173,200 | 141,400 | 1.37 | 100000 | 98 | 80000 | 200000 | |
| M110 CL | 110,000 | 88,000 | 220,000 | 190,520 | 155,540 | 1.45 | 110000 | 98 | 88000 | 220000 | |
| M125 CL | 125,000 | 100,000 | 250,000 | 216,500 | 176,750 | 1.74 | 125000 | 98 | 100000 | 250000 | |
| M130 CL | 130,000 | 104,000 | 260,000 | 225,160 | 183,820 | 1.86 | 130000 | 98 | 104000 | 260000 | |
| M140 CL | 140,000 | 112,000 | 280,000 | 242,480 | 197,960 | 1.93 | 140000 | 98 | 112000 | 280000 | |
| M150 CL | 150,000 | 120,000 | 300,000 | 259,800 | 212,100 | 2.22 | 150000 | 98 | 120000 | – | |
| M160 CL | 160,000 | 128,000 | 320,000 | 277,120 | 226,240 | 2.3 | 160000 | 98 | 128000 | 320000 | |
| M170 CL | 170,000 | 136,000 | 340,000 | 294,440 | 240,380 | 2.45 | 170000 | 98 | 136000 | 340000 | |
| M175 CL | 175,000 | 140,000 | 350,000 | 303,100 | 247,450 | 2.55 | 175000 | 98 | 140000 | 350000 | |
| M180 CL | 180,000 | 144,000 | 360,000 | 311,760 | 254,520 | 2.6 | 180000 | 98 | 144000 | 360000 | |
| M190 CL | 190,000 | 152,000 | 380,000 | 329,080 | 268,660 | 2.68 | 190000 | 98 | 152000 | 380000 | |
| M200 CL | 200,000 | 160,000 | 400,000 | 346,400 | 282,800 | 2.86 | 200000 | 98 | 160000 | 400000 | |
| M225 CL | 225,000 | 180,000 | 450,000 | 389,700 | 318,150 | 3.53 | 225000 | 98 | 180000 | 450000 | |
| M240 CL | 240,000 | 180,000 | – | – | – | 3.53 | 240000 | 98 | 180000 | 450000 | |
| M250 CL | 250,000 | 200,000 | 500,000 | 433,000 | 353,500 | 3.53 | 250000 | 98 | 200000 | 500000 |
Read off SpanSet’s technical datasheet for the Magnum round sling. Where a figure is shown as –, the published datasheet gives a value that does not follow from the rest of the table — call us on (215) 721‑9333 and we will confirm it with SpanSet before you order that size. Capacities are for a sling in good condition, used within ASME B30.9.
