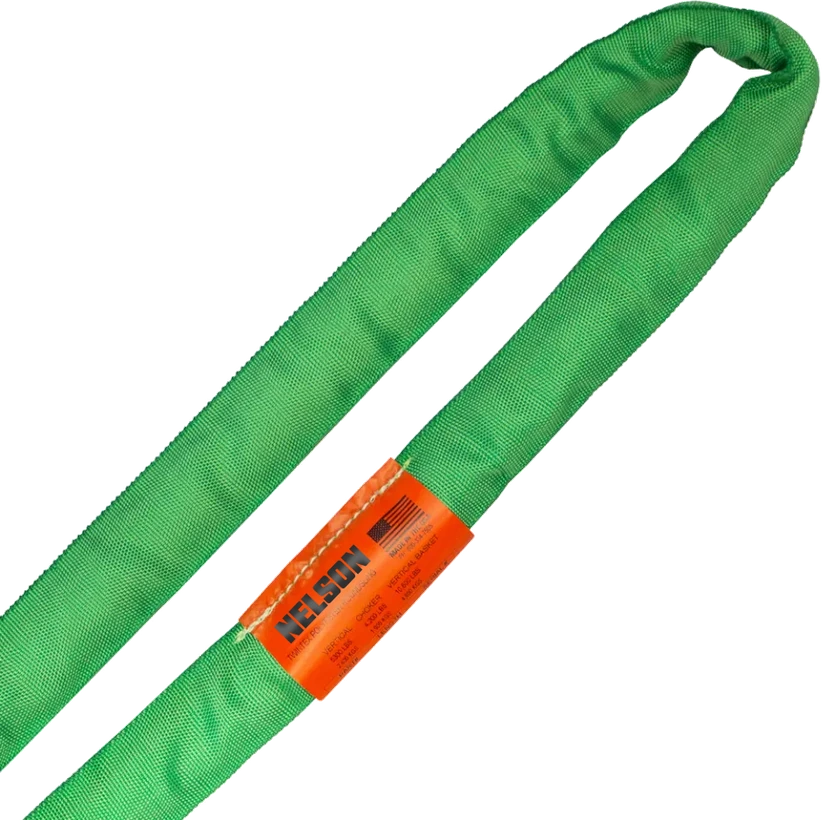

Endless Round Slings
Features
- Reduce cost with less total rigging weight
- Easy handling and storage
- Reduce risk of back and hand injuries
- Cover abrasion will not reduce capacity
- Provides a strong grip on loads
- Provides a tighter choke with an easier release
- Capacities are color coded
Specifications
| Size | Part Number | Sling Color | Vertical Capacity (lbs.) | Choker Capacity (lbs.) | Basket Capacity (lbs.) | Minimum Length (ft.) | Approx Weight (lbs/ft.) | Approx. Body Dia. Relaxed (in.) | Approx. Width At Load (in.) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | E30 | Purple | 2,600 | 2,100 | 5,200 | 1.5 | 0.3 | .50 | 1.68 |
| 2 | E60 | Green | 5,300 | 4,200 | 10,600 | 1.5 | 0.4 | .80 | 1.82 |
| 3 | E90 | Yellow | 8,400 | 6,700 | 16,800 | 2.0 | 0.5 | 1.10 | 2.04 |
| 4 | E120 | Tan | 10,600 | 8,500 | 21,200 | 3.0 | 0.6 | 1.10 | 2.10 |
| 5 | E150 | Red | 13,200 | 10,600 | 26,400 | 3.0 | 0.8 | 1.32 | 2.50 |
| 6 | E180 | White | 16,800 | 13,400 | 33,600 | 3.0 | 1.0 | 1.65 | 3.2 |
| 7 | E240 | Blue | 21,200 | 17,000 | 42,400 | 3.0 | 1.2 | 1.72 | 3.13 |
| 8 | E300 | Orange | 25,000 | 20,000 | 50,000 | 3.0 | 1.6 | 1.90 | 3.00 |
| 9 | E360 | Grey | 31,000 | 24,800 | 62,000 | 3.0 | 2.0 | 2.15 | 3.50 |
| 10 | E480 | Maroon | 40,000 | 32,000 | 80,000 | 8.0 | 2.5 | 2.20 | 3.21 |
| 11 | E600 | Brown | 53,000 | 42,400 | 106,000 | 8.0 | 3.2 | 2.75 | 4.62 |
| 12 | E800 | Olive | 66,000 | 52,800 | 132,000 | 8.0 | 3.7 | 3.12 | 5.25 |
| 13 | E1000 | Black | 90,000 | 72,000 | 180,000 | 8.0 | 4.2 | 3.62 | 6.00 |
