Below the Hook
Features
- This style of lifter is utilized with upper rigging spread between two lift points that adds extra stability to the lift.
- This spreader beam should be utilized where headroom is not limited and comes standard with a pair of swivel hooks.
- Can be supplied with optional chain or wire rope top rigging.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL spreader beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Higher capacities
- Additonal lengths
- Upper and lower shackle design
- Chain top rigging
- Wire rope top rigging
Specifications
Tap Add on any line to build a quote list.

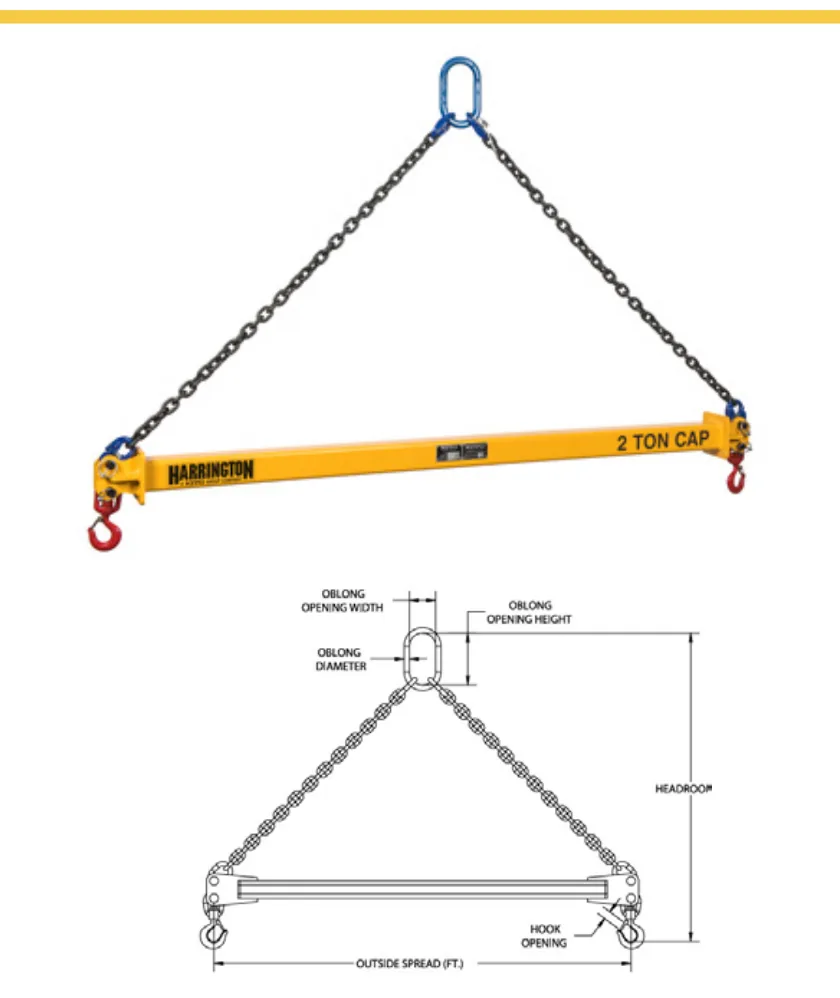

| Model # | Capacity (US Tons) | Outside Spread (ft.) | Dimensions (Inches) Headroom | Oblong ML Diameter | Oblong ML Opening Width | Oblong ML Opening Height | Hook Opening | Weight (Lbs.) | Quote |
|---|---|---|---|---|---|---|---|---|---|
| HSDSB-2-4 | 2 | 4 | 36 | 0.63 | 3 | 6 | 0.91 | 45 | |
| HSDSB-2-6 | 2 | 6 | 48 | 0.63 | 3 | 6 | 0.91 | 60 | |
| HSDSB-2-8 | 2 | 8 | 61 | 0.63 | 3 | 6 | 0.91 | 82 | |
| HSDSB-2-10 | 2 | 10 | 74 | 0.63 | 3 | 6 | 0.91 | 95 | |
| HSDSB-2-12 | 2 | 12 | 86 | 0.63 | 3 | 6 | 0.91 | 115 | |
| HSDSB-2-16 | 2 | 16 | 111 | 0.63 | 3 | 6 | 0.91 | 225 | |
| HSDSB-2-20 | 2 | 20 | 139 | 0.63 | 3 | 6 | 0.91 | 408 | |
| HSDSB-2-24 | 2 | 24 | 164 | 0.63 | 3 | 6 | 0.91 | 445 | |
| HSDSB-5-4 | 5 | 4 | 39 | 1 | 3.5 | 7 | 1.36 | 62 | |
| HSDSB-5-6 | 5 | 6 | 51 | 1 | 3.5 | 7 | 1.36 | 78 | |
| HSDSB-5-8 | 5 | 8 | 64 | 1 | 3.5 | 7 | 1.36 | 100 | |
| HSDSB-5-10 | 5 | 10 | 77 | 1 | 3.5 | 7 | 1.36 | 117 | |
| HSDSB-5-12 | 5 | 12 | 87 | 1 | 3.5 | 7 | 1.36 | 168 | |
| HSDSB-5-16 | 5 | 16 | 116 | 1 | 3.5 | 7 | 1.36 | 305 | |
| HSDSB-5-20 | 5 | 20 | 141 | 1 | 3.5 | 7 | 1.36 | 435 | |
| HSDSB-5-24 | 5 | 24 | 166 | 1 | 3.5 | 7 | 1.36 | 661 | |
| HSDSB-10-4 | 10 | 4 | 43 | 1.25 | 4.38 | 8.75 | 1.61 | 100 | |
| HSDSB-10-6 | 10 | 6 | 56 | 1.25 | 4.38 | 8.75 | 1.61 | 122 | |
| HSDSB-10-8 | 10 | 8 | 67 | 1.25 | 4.38 | 8.75 | 1.61 | 156 | |
| HSDSB-10-10 | 10 | 10 | 81 | 1.25 | 4.38 | 8.75 | 1.61 | 180 | |
| HSDSB-10-12 | 10 | 12 | 90 | 1.25 | 4.38 | 8.75 | 1.61 | 240 | |
| HSDSB-10-16 | 10 | 16 | 119 | 1.25 | 4.38 | 8.75 | 1.61 | 380 | |
| HSDSB-10-20 | 10 | 20 | 145 | 1.25 | 4.38 | 8.75 | 1.61 | 532 | |
| HSDSB-10-24 | 10 | 24 | 171 | 1.25 | 4.38 | 8.75 | 1.61 | 915 |
