Below the Hook
Features
- This style of lifting beam can lift off center loads easily by adjusting the bail prior to the lift.
- This lifter can be used where headroom is limited, & comes with multiple spreads that are adjustable to accommodate various load sizes at 6” adjustable increments.
- Supplied with two lower shackles.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
Specifications
Tap Add on any line to build a quote list.

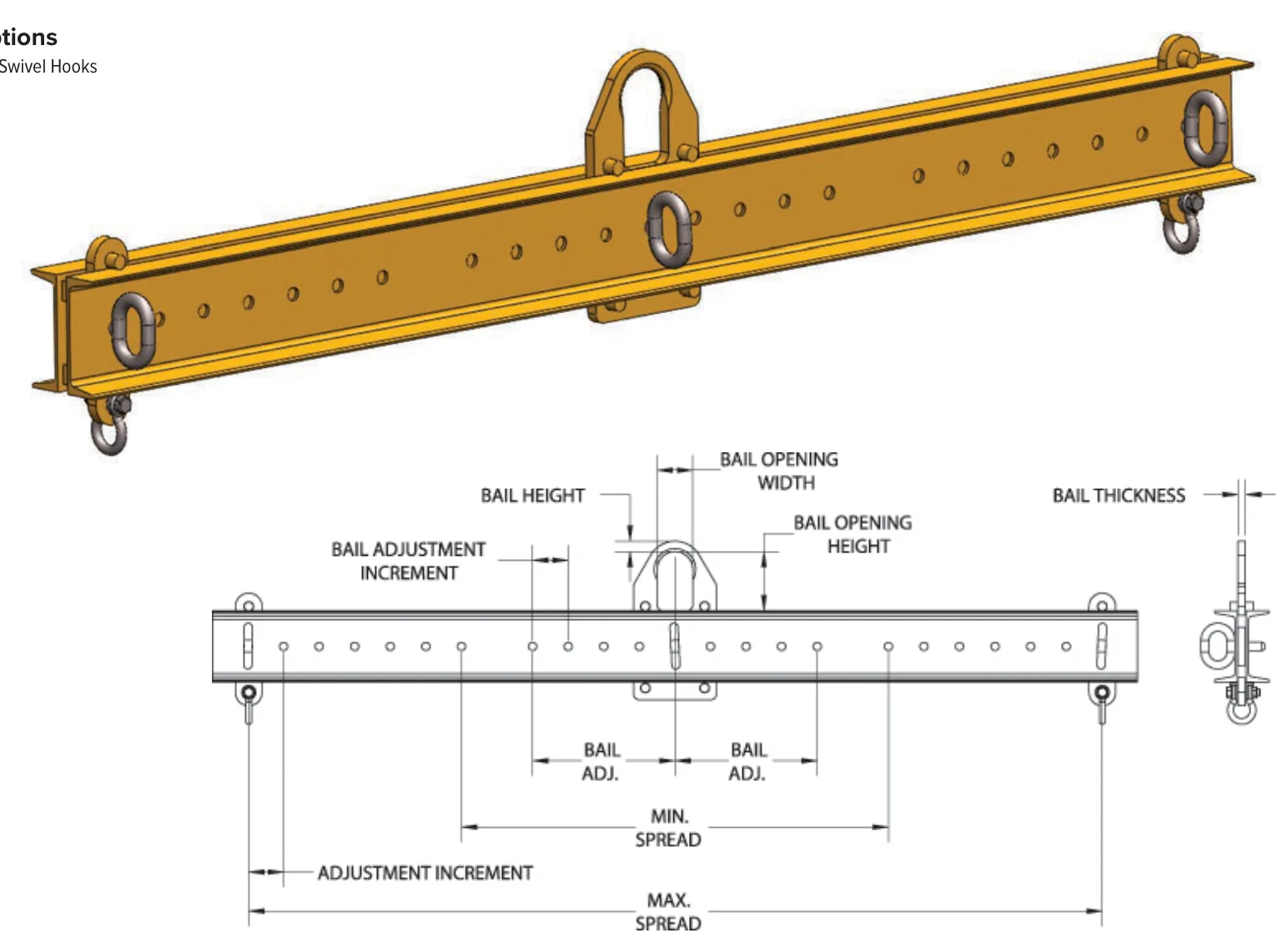

| Model # | Capacity (US Tons) | Max Spread (Ft.) | Min. Spread (Ft.) | Dimensions (Inches) Head- room | Bail Height | Bail Opening Width | Bail Opening Height | Bail Thickness | Bail Adjustment Increments | Bail Travel (Half of Center) | Shackle Size (Tons) | Weight (lbs.) | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HALB-1.25-6 | 1.25 | 6 | 3 | 13.5 | 1 | 3 | 5 | 0.63 | 3 | 12 | 2 | 120 | |
| HALB-2-6 | 2 | 6 | 3 | 14.5 | 1 | 3 | 5 | 0.63 | 3 | 12 | 2 | 140 | |
| HALB-4-8 | 4 | 8 | 4.5 | 20 | 1.5 | 4 | 7 | 0.75 | 6 | 18 | 3.25 | 315 | |
| HALB-5-10 | 5 | 10 | 5 | 22 | 1.5 | 4 | 7 | 1.00 | 6 | 18 | 4.75 | 440 |
