Below the Hook
Features

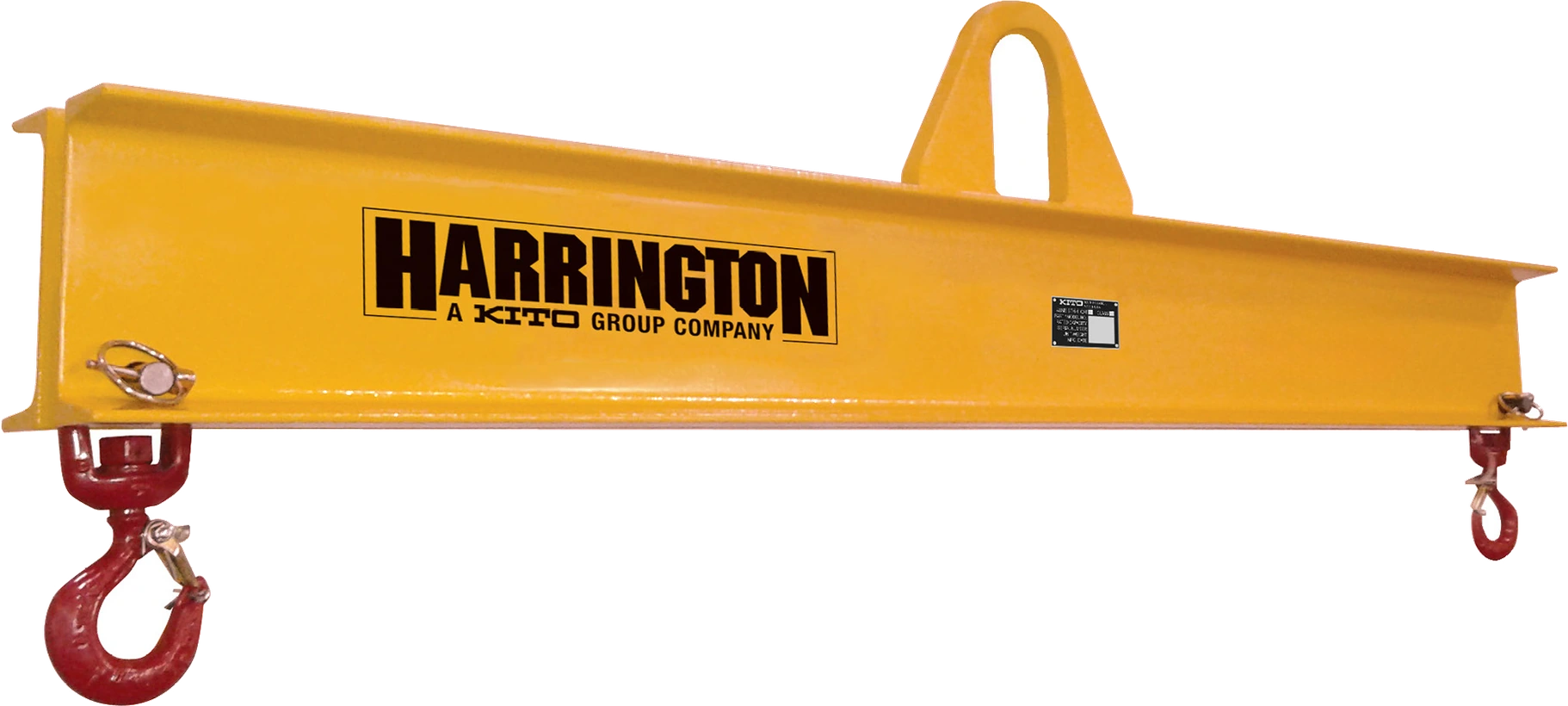

- This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3’ and 4’ beams have two standard spreads).
- Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks
- Integrated beam stands
Specifications
Tap Add on any line to build a quote list.
| Model # | Capacity (US Tons) | Outside Spread | Dimensions (Inches) Headroom | Bail Height | Bail Opening Width | Bail Opening Height | Bail Thickness | Hook Opening | Weight (lbs.) | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| HSDLB-1-4 | 1 | 4 | 13 | 0.88 | 3 | 5 | 0.75 | 0.91 | 50 | |
| HSDLB-1-6 | 1 | 6 | 14 | 0.88 | 3 | 5 | 0.75 | 0.91 | 80 | |
| HSDLB-1-8 | 1 | 8 | 14 | 0.88 | 3 | 5 | 0.75 | 0.91 | 105 | |
| HSDLB-1-10 | 1 | 10 | 15 | 0.88 | 3 | 5 | 0.75 | 0.91 | 150 | |
| HSDLB-1-12 | 1 | 12 | 16 | 0.88 | 3 | 5 | 0.75 | 0.91 | 275 | |
| HSDLB-2-4 | 2 | 4 | 14 | 0.88 | 3 | 5 | 0.75 | 0.91 | 60 | |
| HSDLB-2-6 | 2 | 6 | 15 | 0.88 | 3 | 5 | 0.75 | 0.91 | 95 | |
| HSDLB-2-8 | 2 | 8 | 16 | 0.88 | 3 | 5 | 0.75 | 0.91 | 150 | |
| HSDLB-2-10 | 2 | 10 | 17 | 0.88 | 3 | 5 | 0.75 | 0.91 | 265 | |
| HSDLB-2-12 | 2 | 12 | 18 | 0.88 | 3 | 5 | 0.75 | 0.91 | 295 | |
| HSDLB-5-4 | 5 | 4 | 19 | 2 | 4 | 7 | 1.25 | 1.36 | 145 | |
| HSDLB-5-6 | 5 | 6 | 20 | 2 | 4 | 7 | 1.25 | 1.36 | 210 | |
| HSDLB-5-8 | 5 | 8 | 22 | 2 | 4 | 7 | 1.25 | 1.36 | 280 | |
| HSDLB-5-10 | 5 | 10 | 24 | 2 | 4 | 7 | 1.25 | 1.36 | 380 | |
| HSDLB-5-12 | 5 | 12 | 25 | 2 | 4 | 7 | 1.25 | 1.36 | 570 | |
| HSDLB-10-4 | 10 | 4 | 23 | 2 | 4 | 7 | 1.25 | 1.61 | 165 | |
| HSDLB-10-6 | 10 | 6 | 25 | 2 | 4 | 7 | 1.25 | 1.61 | 260 | |
| HSDLB-10-8 | 10 | 8 | 27 | 2 | 4 | 7 | 1.25 | 1.61 | 410 | |
| HSDLB-10-10 | 10 | 10 | 30 | 2 | 4 | 7 | 1.25 | 1.61 | 770 | |
| HSDLB-10-12 | 10 | 12 | 30 | 2 | 4 | 7 | 1.25 | 1.61 | 910 |
