GrabIQ Chain Slings
Features
- Heavy duty steel identification tag
- Sizes available from 5/16” to 5/8”
- Every chain sling is proof test to 2x its working load limit
- Latches included with all sling hooks
- 4 to 1 safety factor
- Made in Hatfield, PA.
- Specify chain size
- Specify leg length (bearing point to bearing point)
- Specify end fittings

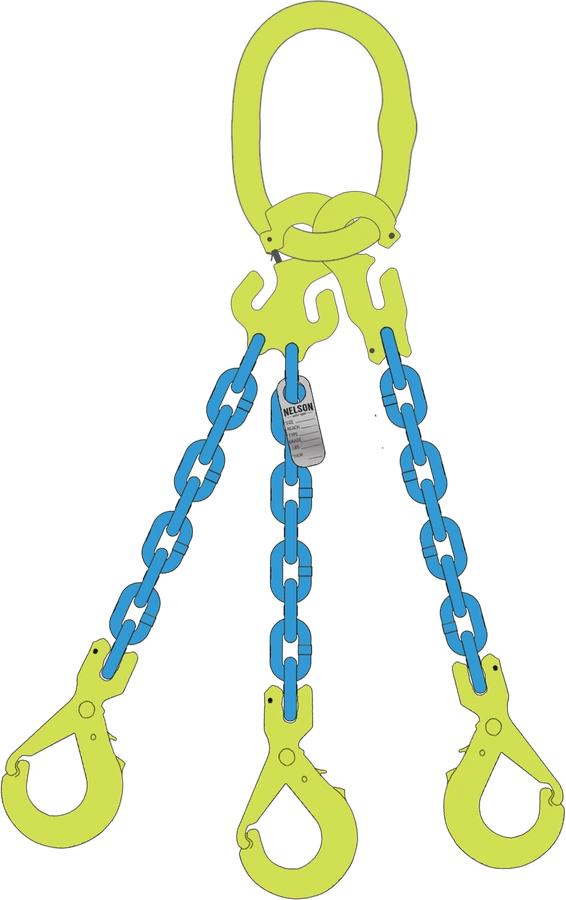

- TG3-GBK - Triple leg chain sling with an oblong master link, dual C-Grab, and C-Grab at the top, clevis self-locking grip hooks at the bottom
Specifications
| Chain Size (in.) | (mm) | Chain Grade | Rated Capacity (lbs.) | Dimesions (in.) Oblong Master Link (MF) | Oversized Master Link (MFH) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| — | — | — | 60˚ | 45˚ | 30˚ | — | — | — | — | — | — |
| — | — | — | — | — | — | Diameter | Inside Width | Inside Length | Diameter | Inside Width | Inside Length |
| 5/16” | 8.00 | 100 | 14,800 | 12,100 | 8,500 | 0.87 | 3.7 | 6.3 | 0.9 | 4.9 | 9.1 |
| 3/8 | 10.0 | 100 | 22,800 | 18,600 | 13,200 | 1.1 | 4.3 | 7.5 | 1.1 | 5.3 | 9.8 |
| 1/2 | 13.0 | 100 | 39,000 | 31,800 | 22,500 | 1.3 | 5.5 | 9.4 | 1.3 | 5.3 | 11.0 |
| 5/8 | 16.0 | 100 | 58,700 | 47,900 | 33,900 | 1.6 | 5.9 | 9.8 | 1.6 | 6.9 | 12.6 |
Configurations
The code names the assembly from the top down: the master link or top fitting first, then the hook on the end of each leg. Every one is made to order in any leg length. The fittings themselves are sold separately, so a sling can be rebuilt rather than replaced.
TG3-EGKNEGKN sling hook
TG3-GBKGBK self-locking hook
