Wire Rope Slings

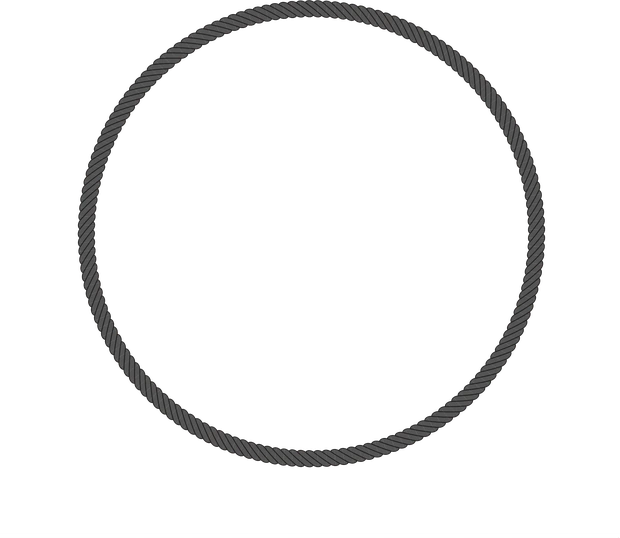

A grommet is an endless sling — one continuous loop, hand tucked, with no eyes and no hardware anywhere on it. Because there is no end fitting there is no fixed wear point: you rotate it a little each lift and the wear spreads round the whole body instead of concentrating where an eye would be.
That makes it the right answer for repetitive lifts of the same thing, and for choking round a load where a conventional sling would wear through at the eye. It is also the simplest sling there is, which is part of why it lasts.
Features
- Hand tucked spliced continuous construction
- Sizes available from 1/4” to 2”
- 6×19 & 6×37 class bright EIPS IWRC wire rope
- Galvanized & stainless steel wire rope available on request
- Heavy duty stainless steel tag
- 5:1 design factor
- Proof testing available on request
- Made in Hatfield, PA
How to order
- Specify wire rope size
- Specify circumference
- Minimum circumference is 96× the body diameter
The body diameter is the finished grommet, not the rope it is made from — a grommet made from 1/2 inch rope has a body of about 1 inch. Both the capacities and the minimum circumference are worked from the body.
Rated capacities
Every grommet is made to order — tap Add on the size you want and tell us the length in the quote.
210 strand laid hand splice. Tons of 2,000 lb, at a 5:1 design factor.
| Rope Dia. (in.) | Min. Circumference (ft.) | Vertical | Choker | Vertical Basket | 60° | 45° | 30° | Quote |
|---|---|---|---|---|---|---|---|---|
| 1/4 | 2 | 0.94 | 0.66 | 1.9 | 1.6 | 1.3 | 0.94 | |
| 5/16 | 3 | 1.5 | 1 | 2.9 | 2.5 | 2.1 | 1.5 | |
| 3/8 | 3 | 2.1 | 1.5 | 4.2 | 3.6 | 3 | 2.1 | |
| 7/16 | 4 | 2.8 | 2 | 5.7 | 4.9 | 4 | 2.8 | |
| 1/2 | 4 | 3.7 | 2.6 | 7.3 | 6.4 | 5.2 | 3.7 | |
| 9/16 | 5 | 4.6 | 3.2 | 9.3 | 8 | 6.6 | 4.6 | |
| 5/8 | 5 | 5.7 | 4 | 11 | 9.9 | 8.1 | 5.7 | |
| 3/4 | 6 | 8.2 | 5.7 | 16 | 14 | 12 | 8.2 | |
| 7/8 | 7 | 11 | 7.7 | 22 | 19 | 16 | 11 | |
| 1 | 8 | 14 | 10 | 29 | 25 | 20 | 14 | |
| 1-1/8 | 9 | 18 | 12 | 35 | 31 | 25 | 18 | |
| 1-1/4 | 10 | 21 | 15 | 43 | 37 | 30 | 21 | |
| 1-3/8 | 11 | 25 | 18 | 51 | 44 | 36 | 25 | |
| 1-1/2 | 12 | 30 | 21 | 60 | 52 | 42 | 30 | |
| 1-3/4 | 14 | 40 | 28 | 79 | 69 | 56 | 40 | |
| 2 | 16 | 50 | 35 | 101 | 87 | 71 | 50 |
Basket and vertical capacities assume a D/d ratio of 5, where d is the body diameter of the finished grommet, and a pin no smaller than five times the body diameter. Minimum circumference is 96 times the body diameter. Sling angles below 30° are not to be used.
Fabricated in Hatfield and proof tested in house. Tell us the size, the length and the fittings and we will build it; if you would rather tell us the load and the geometry, we will work out the sling.
Vertical, choker, basket
The same sling has three ratings depending on how you hitch it, and the table gives all three. Read the column that matches what you are actually going to do.
- Vertical
- Straight pull, hook at the top, load at the bottom. The sling’s full rating, and the number every other hitch is worked out from. A single vertical leg lets the load spin, so it wants a tag line or a second leg.
- Choker
- The sling passes round the load and back through its own eye. Roughly 75% of vertical, because the body of the sling is bent hard where it passes through the eye. It grips, so it is what you use on a bundle or anything that could slide — but it does not make a bundle safe on its own.
- Basket
- Both eyes on the hook, the load cradled in the bight. Twice vertical when the legs hang straight down, because two legs share the load — and less than that the moment they splay, which is what the angle table below is about.
Basket capacities on this page assume the load is over a pin or a hook of adequate diameter. Bend a sling round something too small and you lose strength fast; that is the D/d ratio, and it is set out below.
Sling angle is the thing that catches people
The moment a leg is not vertical it carries more tension than its share of the load, and the flatter the angle the worse it gets. The angle that matters is measured from the horizontal — from the top of the load up to the leg — not from the vertical, and confusing the two is the single most common mistake in rigging.
| Angle from horizontal | Leg carries | What that means |
|---|---|---|
| 90° | 100% | Straight vertical lift. Nothing lost. |
| 60° | 87% | The usual working angle, and what the first column of the table assumes. |
| 45° | 71% | Legs spread as wide as they are tall. |
| 30° | 50% | Half your capacity gone. The flattest angle you should ever work at. |
| Under 30° | — | Not to be used. Tension climbs so steeply that a small error in the angle is a large error in the load. |
A quick way to picture it: if the legs spread out as wide as the sling is tall, you are at about 45° and each leg is doing 1.4 times the work it would do straight down. The fix is almost always a longer sling or a spreader beam, not a bigger one.
The rated capacities in the table already have the angle worked in — the 45° column is the capacity of the assembly at 45°, not something to reduce again. Just read the column that matches how you will rig it.
D/d ratio — what you bend it around
Wire rope loses strength when it is bent. How much depends on the ratio between the diameter of what you bend it over (D) and the diameter of the rope itself (d). Bend a 1/2 inch sling round a 5 inch pin and D/d is 10; round a 1 inch shackle pin and it is 2, and you have thrown away roughly a quarter of the sling.
| D/d | Strength retained |
|---|---|
| 8 or more | 95% |
| 6 | 92% |
| 4 | 87% |
| 2 | 75% |
| 1 | 50% |
This is why a basket capacity comes with a condition attached, and why a sharp corner is worse than a small pin — a square edge is effectively a D/d of nearly nothing. Pad it, or use a softener.
When to take a sling out of service
Look at a sling before every lift, and have it inspected properly at least once a year — more often if it is working hard. Remove it from service and destroy it if you find any of this:
The rope
- Ten randomly distributed broken wires in one rope lay
- Five broken wires in one strand in one lay
- Wear or scraping of one third the original diameter of an outside wire
- Kinking, crushing, birdcaging or any distortion of the rope structure
- Heat damage — melting, charring, or weld spatter
- Severe corrosion, or pitting you can feel
- A section that has stretched noticeably thinner than the rest
The ends and fittings
- Broken or worn wires at or near an end attachment
- A cracked, deformed or worn end fitting
- A hook opened past the manufacturer’s limit, or twisted
- A missing or unreadable identification tag
- A sling that has been shock loaded
- Any repair not made by a qualified person
This follows ASME B30.9. A sling with no legible tag cannot be used, whatever condition the rope is in — and retagging is not something to do from memory, because the tag has to match what the sling actually is. Bring it to us and we will identify it, test it and tag it, or tell you plainly that it should be replaced. We also inspect on site and cover all of this in rigging training.
