Rigging Hardware
A latch is a wear part. When it bends, sticks or stops closing fully, the hook is out of service until it is replaced.

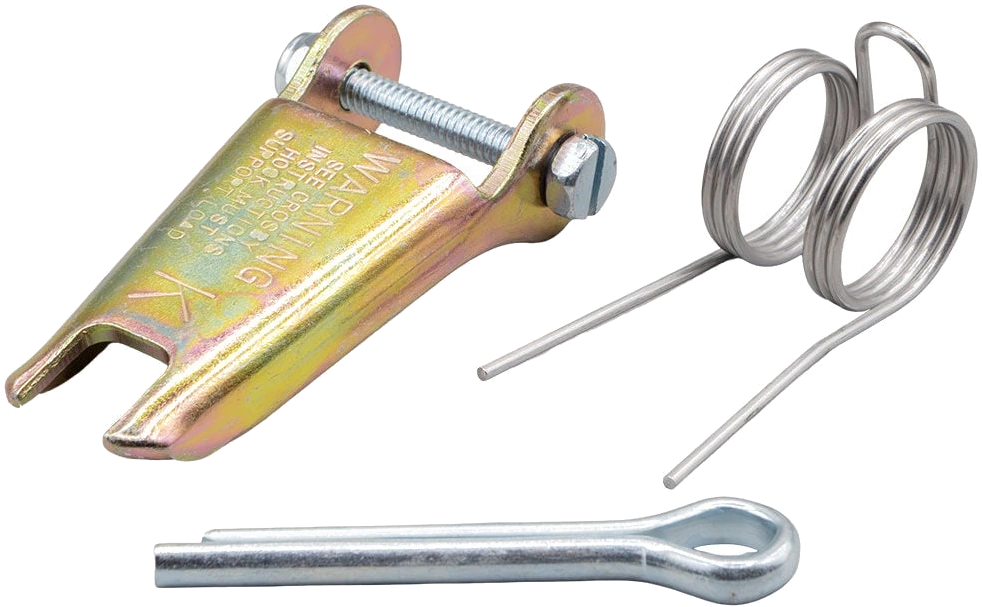

SS-4320 kits fit the current integrated-latch hooks. Match the kit to the hook, not to the chain size.
Features
- Heavy duty stamped latch interlocks with the hook tip.
- High cycle, long life spring.
- Can be made into a “Positive Locking” Hook when proper cotter pin is utilized.
- Latch kits shipped unassembled and individually packaged with instructions.
- Meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g)(when secured with the bolt, nut and pin) for lifting personnel. Hook Size (t) Hook ID Code S-4320 Stock No Carbon Alloy Bronze 3/4 1 .5 D 109632 1 1-1/2 .6 F 1096374 1-1/2 2 1 G 109642 2 3 1.4 H 109646 3 5 2 I 1096515 5 7 3.5 J 109656 7-1/2 11 5 K 109660 10 15 6.5 L 109665 15 22 10 N 1096704 SS-4320 REPLACEMENT LATCH KITS.
Specifications
Tap Add on any line to build a quote list.
| Carbon | Hook Size (t) Alloy | Bronze | Hook ID Code | S-4320 Stock No. | Quote |
|---|---|---|---|---|---|
| 3/4 | 1 | .5 | D | 1096325 | |
| 1 | 1-1/2 | .6 | F | 1096374 | |
| 1-1/2 | 2 | 1 | G | 1096421 | |
| 2 | 3 | 1.4 | H | 1096468 | |
| 3 | 5 | 2 | I | 1096515 | |
| 5 | 7 | 3.5 | J | 1096562 | |
| 7-1/2 | 11 | 5 | K | 1096609 | |
| 10 | 15 | 6.5 | L | 1096657 | |
| 15 | 22 | 10 | N | 1096704 |
