Wire Rope End Fittings
Features
Assembly includes socket, wedge, pin, wire rope clip, tensioner, bolts and secondary retention wire.
- The 423T wedge socket terminations have a minimum efficiency rating on most high performance, high strength, compacted strand, rotation resistant wire ropes of 80% based on the catalog breaking strength of the various ropes.
- Design eliminates the difficulty of properly seating the wedge with high performance wire rope into a wedge socket termination.
- Proper application of the Super TERMINATOR® eliminates the “first load” requirement of conventional wedge socket terminations.
- S‑423TW Wedge Kit can be retrofitted onto existing Crosby S‑421T TERMINATOR® wedge sockets.
- Wedge and accessories provided with a zinc finish.
- Meets the performance requirements of EN 13411‑6:2003.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these sockets meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
- US Patent 8,375,527 B1.
- Basket is cast steel and individually magnetic particle inspected.
- Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets.
- Secures the tail or “dead end” of the wire rope to the wedge, thus eliminates loss or “punch out” of the wedge.
- Eliminates the need for an extra piece of rope, and is easily installed.
- The TERMINATOR® wedge eliminates the potential breaking off of the tail due to fatigue.
- The tail, which is secured by the base of the clip and the tension device, is left undeformed and available for reuse.
- Available with bolt, nut and cotter pin.
Specifications
Assembly and wedge kit stock numbers
Three ways to buy the same size: the complete assembly with a round pin, the same assembly with a bolt, nut and cotter pin, or the wedge kit on its own to retrofit a socket you already have.
| Wire Rope Dia. | S‑423T — assembly with round pin and cotter pin | S‑423TB — assembly with bolt, nut and cotter pin | S‑423TW** wedge kit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | Stock No. | API 2C Stock No. | Weight Each (lbs.) | Stock No. | API 2C Stock No. | Weight Each (lbs.) | Stock No. | Weight Each (lbs.) |
| 5/8 | 14-16 | 1035123 | 1035128 | 12.7 | 1035218 | 1035223 | 13.1 | 1034018 | 5.2 |
| 3/4 | 18-19 | 1035132 | 1035137 | 19.4 | 1035227 | 1035232 | 19.1 | 1034027 | 7.2 |
| 7/8 | 20-22 | 1035141 | 1035146 | 28.8 | 1035236 | 1035241 | 27.8 | 1034036 | 10.3 |
| 1 | 24-26 | 1035150 | 1035155 | 39.2 | 1035245 | 1035250 | 37.3 | 1034045 | 11.9 |
| 1-1/8 | 28 | 1035169 | 1035174 | 57.1 | 1035254 | 1035259 | 57.9 | 1034054 | 19.9 |
| 1-1/4 | 30-32 | 1035178 | 1035183 | 88.6 | 1035272 | 1035277 | 88.1 | 1034063 | 33.8 |
** Kit contains wedge, wire rope clip and bolts, tensioner bolt and secondary retention wire.

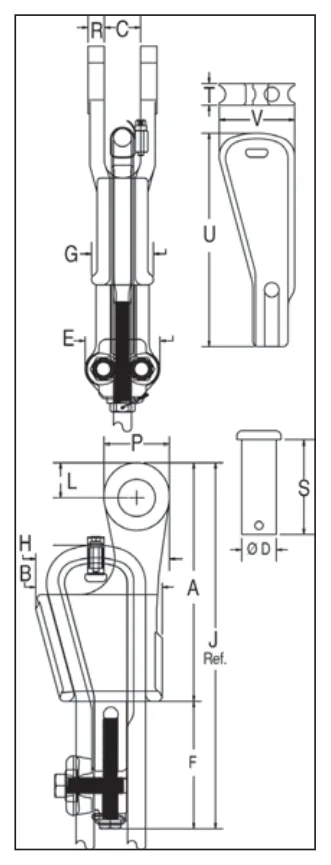

Dimensions
Tap Add on any line to build a quote list.
| Wire Rope Dia. (in.) | (mm) | S-423T Stock No. | Dimensions (in.) A | B | C | D | E | F | G | H | J* | L | P | R | S | T | U | V | Quote | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/8 | 14-16 | 1035123 | 8.25 | 4.50 | 1.25 | 1.19 | 3.00 | 4.06 | 2.13 | 4.61 | 12.31 | 1.22 | 2.25 | .56 | 3.25 | .75 | 6.88 | 2.60 | — | |
| 3/4 | 18-19 | 1035132 | 9.88 | 5.20 | 1.50 | 1.38 | 3.25 | 4.81 | 2.44 | 5.37 | 14.69 | 1.40 | 2.62 | .66 | 3.63 | .88 | 7.65 | 3.02 | — | |
| 7/8 | 20-22 | 1035141 | 11.25 | 5.88 | 1.75 | 1.63 | 3.81 | 5.73 | 2.69 | 6.16 | 16.98 | 1.67 | 3.13 | .75 | 4.31 | 1.00 | 9.47 | 3.47 | — | |
| 1 | 24-26 | 1035150 | 12.81 | 6.56 | 2.00 | 2.00 | 3.81 | 5.73 | 2.94 | 7.05 | 18.54 | 2.01 | 3.75 | .88 | 4.70 | 1.13 | 10.41 | 3.82 | — | |
| 1-1/8 | 28 | 1035169 | 14.38 | 6.94 | 2.25 | 2.25 | 4.00 | 6.85 | 3.38 | 7.81 | 21.23 | 2.26 | 4.25 | 1.00 | 5.44 | 1.25 | 11.83 | 4.22 | — | |
| 1-1/4 | 30-32 | 1035178 | 16.34 | 8.63 | 2.62 | 2.50 | 4.50 | 7.76 | 3.57 | 9.38 | 24.10 | 2.34 | 4.50 | 1.06 | 6.62 | 1.38 | 13.87 | 5.82 | — |
* Nominal. Note: for intermediate wire rope sizes, use the next larger size socket. The S‑423T Super TERMINATOR® wedge is designed to be assembled only into the Crosby S‑421T TERMINATOR® socket body. Important: the S‑423TW for sizes 5/8” through 1‑1/8” (14–28 mm) will fit the respective size standard Crosby S‑421T basket. The 1‑1/4” (30–32 mm) S‑423TW will only fit the Crosby S‑421T 1‑1/4” basket marked TERMINATOR.
