Rigging Hardware
A self-locking hook latches shut and stays shut under load — the latch cannot be opened while the hook is loaded, which is what you want overhead and anywhere the load could swing.

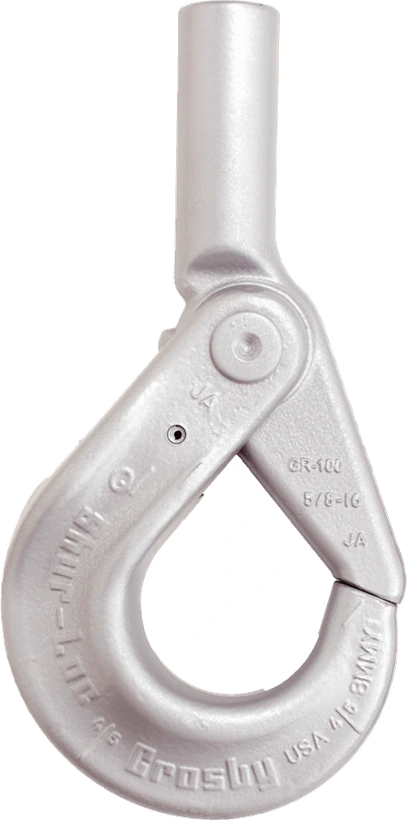

The S-1318A has a shank rather than an eye, to be fitted into a block or swivel assembly.
Features
- Forged alloy steel, Quenched & Tempered.
- Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
- Easy to operate with enlarged thumb access.
- Positive lock latch is self‑locking when the hook is loaded.
- The SHUR‑LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
- Fatigue rated to 20,000 cycles at 1‑1/2 times the Working Load Limit.
Specifications
Tap Add on any line to build a quote list.
| (in.) | Chain Size | (mm) | S-1318A Stock No. | Frame code | Grade 100 Alloy Chain Working Load Limit (lbs.) | A† | B | Quote |
|---|---|---|---|---|---|---|---|---|
| — | — | 6 | 1098200 | D | 3200 | .79 | 2.16 | |
| 1/4-5/16 | — | 7-8 | 1098209 | G | 5700 | 1.00 | 2.40 | |
| — | 3/8 | 10 | 1098218 | H | 8800 | 1.14 | 2.95 | |
| — | 1/2 | 13 | 1098227 | I | 15000 | 1.34 | 3.35 |
* Ultimate load is 4 times the Working Load Limit, based on Grade 100 chain. ** Deformation indicators.
