GrabIQ Chain Slings
Features
- Heavy duty stainless steel identification tag
- Sizes available from 5/16” to 5/8”
- Every chain sling is proof test to 2x its working load limit
- Latches included with all sling hooks
- 4 to 1 safety factor
- Made in Hatfield, PA.
- Specify chain size
- Specify leg length (bearing point to bearing point)
- Specify end fittings

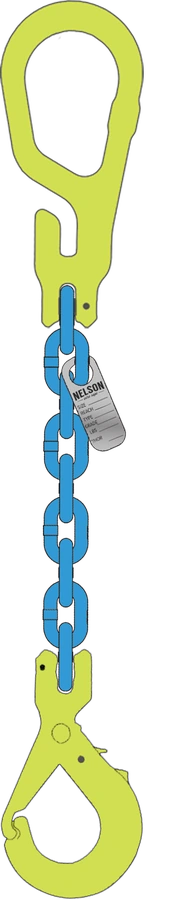

- MG-GBK - Single leg chain sling with a master grab link at the top, clevis self locking grip hook at the bottom
Specifications
| Chain Size (in.) | (mm) | Chain Grade | Rated Capacity (lbs.) | Dimesions (in.) Master Grab (MG) | Oblong Master Link (MF) | MFX Oversized Master Link (MFX | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| — | — | — | — | Diameter | Inside Width | Inside Length | Diameter | Inside Width | Inside Length | Diameter | Inside Width | Inside Length |
| 5/16” | 8.00 | 100 | 5,700 | 0.71 | 2.4 | 3.6 | 0.55 | 2.8 | 4.9 | 1.0 | 7.1 | 13.4 |
| 3/8 | 10.0 | 100 | 8,800 | 0.87 | 3.0 | 4.4 | 0.67 | 3.1 | 5.5 | 1.0 | 7.1 | 13.4 |
| 1/2 | 13.0 | 100 | 15,000 | 1.0 | 3.5 | 5.4 | 0.87 | 3.7 | 6.3 | 1.1 | 7.1 | 13.4 |
| 5/8 | 16.0 | 100 | 22,600 | 1.2 | 4.1 | 6.2 | 1.1 | 4.3 | 7.5 | 1.3 | 7.1 | 13.4 |
Configurations
The code names the assembly from the top down: the master link or top fitting first, then the hook on the end of each leg. Every one is made to order in any leg length. The fittings themselves are sold separately, so a sling can be rebuilt rather than replaced.
MG-EGKNEGKN sling hook
MG-GBKGBK self-locking hook
MG-LKBKLKBK swivel hook with bearing
TLI-GBKGBK self-locking hook
TL1X-GBKGBK self-locking hookNeed a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
