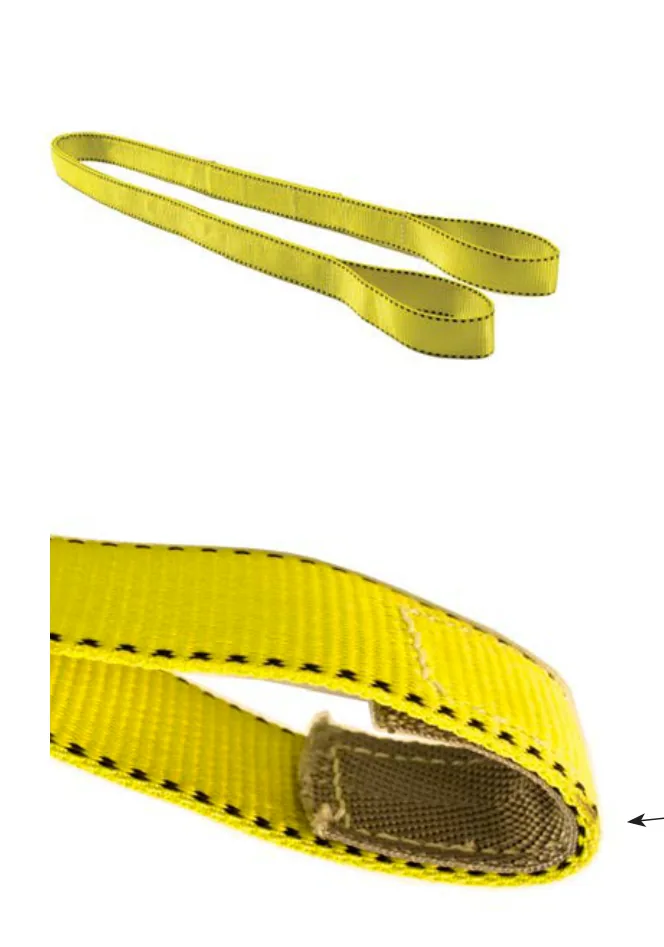

Web Slings
Specifications
Tap Add on any line to build a quote list.
| # of Plys | Part No. | Web Width (Inches) | Rated Capacity (lbs.) Vertical | Choke | Basket | Eye Dimensions (inches) Width | Length | Min. Standard Length (ft) | Approximate Sling Weight (lbs.) Base | Adder/ft. | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | EE191 | 1 | 1,600 | 1,250 | 3,200 | 1 | 9 | 3 | .40 | .06 | |
| — | EE192 | 2 | 3,200 | 2,500 | 6,400 | 2 | 9 | 4 | .90 | .12 | |
| — | EE193 | 3 | 4,800 | 3,800 | 9,600 | 1-1/2 | 9 | 4 | 1.40 | .18 | |
| — | EE194 | 4 | 6,400 | 5,000 | 12,800 | 2 | 12 | 4 | 1.90 | .24 | |
| — | EE196 | 6 | 9,300 | 7,440 | 18,600 | 2 | 14 | 5 | 3.40 | .36 | |
| 2 | EE291 | 1 | 3,200 | 2,500 | 6,400 | 1 | 9 | 3 | .40 | .13 | |
| — | EE292 | 2 | 6,400 | 5,000 | 12,800 | 2 | 9 | 3 | .90 | .25 | |
| — | EE293 | 3 | 9,300 | 7,440 | 18,600 | 1-1/2 | 12 | 4 | 1.70 | .38 | |
| — | EE294 | 4 | 11,500 | 9,200 | 23,000 | 2 | 12 | 4 | 2.30 | .50 | |
| — | EE296 | 6 | 16,500 | 13,200 | 33,000 | 2 | 14 | 6 | 4.90 | .76 | |
| 3 | EE391 | 1 | 4,100 | 3,280 | 8,200 | 1 | 12 | 4 | 1.0 | .20 | |
| — | EE392 | 2 | 8,300 | 6,640 | 16,600 | 2 | 12 | 4 | 2.10 | .40 | |
| — | EE393 | 3 | 12,500 | 10,000 | 25,000 | 1-1/2 | 18 | 5 | 3.70 | .59 | |
| — | EE394 | 4 | 16,000 | 12,800 | 32,000 | 2 | 18 | 5 | 5.00 | .79 | |
| — | EE396 | 6 | 23,000 | 18,400 | 46,000 | 3 | 20 | 5 | 7.60 | 1.2 | |
| 4 | EE491 | 1 | 6,200 | 4,960 | 12,400 | 1 | 12 | 4 | 1.10 | .26 | |
| — | EE492 | 2 | 12,400 | 9,920 | 24,800 | 2 | 12 | 4 | 2.20 | .53 | |
| — | EE493 | 3 | 17,000 | 13,600 | 34,000 | 1-1/2 | 18 | 5 | 4.10 | .79 | |
| — | EE494 | 4 | 22,000 | 17,600 | 44,000 | 2 | 18 | 5 | 5.50 | 1.1 | |
| — | EE496 | 6 | 33,000 | 26,400 | 66,000 | 3 | 20 | 5 | 8.30 | 1.6 |
Need a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
