High Performance Crane Rope

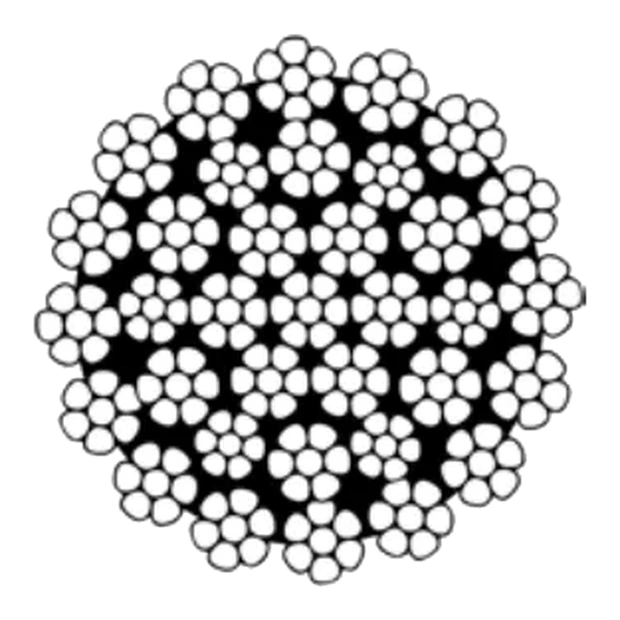

A very flexible rotation resistant rope whose core is laid to a special design that avoids crossovers between the core strands — which is what stops the rope destroying itself from the inside out.
It is the hoist rope for mobile cranes, electrical hoists and anywhere else a rotation resistant rope is called for.
Features
- Temperature range of use: −50°C to +75°C
- Suitable for multilayer spooling in Lang’s lay
- Available in ordinary lay and Lang’s lay
- Available in right hand and left hand
- Available in galvanized and ungalvanized
- Compacted
- Swivel
- Lubricated
CASAR, a WireCo WorldGroup brand — made in GermanySpecifications
Cut to length and terminated in Hatfield. Call for availability and lead time.
| Diameter | Approximate Weight | Minimum Breaking Force — 1960 N/mm² | Minimum Breaking Force — 2160 N/mm² | ||||
|---|---|---|---|---|---|---|---|
| mm | in. | kg/m | lbs/ft | kN | tons | kN | tons |
| 10 | — | 0.50 | 0.34 | 92.0 | 10.34 | 98.0 | 11.02 |
| 11 | 7/16 | 0.61 | 0.41 | 111.0 | 12.48 | 119.0 | 13.38 |
| 12 | — | 0.73 | 0.49 | 132.0 | 14.84 | 144.0 | 16.19 |
| — | 1/2 | 0.81 | 0.55 | 147.8 | 16.61 | 161.3 | 18.13 |
| 13 | — | 0.85 | 0.57 | 155.0 | 17.42 | 169.0 | 19.00 |
| 14 | — | 0.99 | 0.67 | 179.0 | 20.12 | 195.0 | 21.92 |
| 15 | — | 1.13 | 0.76 | 206.0 | 23.16 | 225.0 | 25.29 |
| 16 | 5/8 | 1.29 | 0.87 | 235.0 | 26.42 | 257.0 | 28.89 |
| 17 | — | 1.46 | 0.98 | 261.0 | 29.34 | 285.0 | 32.04 |
| 18 | — | 1.63 | 1.09 | 298.0 | 33.50 | 325.0 | 36.53 |
| 19 | 3/4 | 1.81 | 1.22 | 329.0 | 36.98 | 359.0 | 40.53 |
| 20 | — | 2.02 | 1.36 | 367.0 | 41.25 | 401.0 | 45.07 |
| 21 | — | 2.23 | 1.50 | 402.0 | 45.19 | 439.0 | 49.35 |
| 22 | — | 2.44 | 1.64 | 442.0 | 49.68 | 483.0 | 54.29 |
| — | 7/8 | 2.48 | 1.67 | 451.1 | 50.71 | 492.9 | 55.40 |
| 23 | — | 2.68 | 1.80 | 483.0 | 54.29 | 527.0 | 59.24 |
| 24 | — | 2.90 | 1.95 | 525.0 | 59.01 | 573.0 | 64.41 |
| 25 | — | 3.14 | 2.11 | 571.0 | 64.18 | 623.0 | 70.03 |
| — | 1 | 3.25 | 2.18 | 589.4 | 66.25 | 643.1 | 72.29 |
| 26 | — | 3.42 | 2.30 | 615.0 | 69.13 | 671.0 | 75.42 |
| 27 | — | 3.68 | 2.47 | 669.0 | 75.20 | 730.0 | 82.06 |
| 28 | — | 3.95 | 2.65 | 719.0 | 80.82 | 784.0 | 88.13 |
| — | 1 1/8 | 4.11 | 2.76 | 748.8 | 84.17 | 816.5 | 91.78 |
| 29 | — | 4.26 | 2.86 | 768.0 | 86.33 | 838.0 | 94.19 |
| 30 | — | 4.55 | 3.05 | 827.0 | 92.96 | 903.0 | 101.50 |
| 31 | — | 4.85 | 3.26 | 879.0 | 98.80 | 959.0 | 107.80 |
| 32 | 1 1/4 | 5.17 | 3.47 | 934.0 | 104.99 | 1,019.0 | 114.54 |
| 33 | — | 5.49 | 3.69 | 1,003.0 | 112.74 | 1,095.0 | 123.08 |
| 34 | — | 5.83 | 3.92 | 1,054.0 | 118.47 | 1,150.0 | 129.27 |
| 35 | 1 3/8 | 6.19 | 4.16 | 1,116.5 | 125.50 | 1,218.2 | 136.93 |
| 36 | — | 6.54 | 4.40 | 1,187.0 | 133.42 | 1,296.0 | 145.68 |
| 38 | 1 1/2 | 7.31 | 4.91 | 1,322.0 | 148.60 | 1,443.0 | 162.20 |
| 40 | — | 8.06 | 5.41 | 1,467.0 | 164.90 | 1,601.0 | 179.96 |
| — | 1 5/8 | 8.58 | 5.77 | 1,562.0 | 175.58 | 1,704.7 | 191.61 |
| 42 | — | 8.87 | 5.96 | 1,616,0 | 181.65 | 1,764.0 | 198.28 |
| 44 | — | 9.77 | 6.56 | 1,770.0 | 198.96 | 1,932.0 | 217.17 |
| — | 1 3/4 | 9.97 | 6.70 | 1,806.4 | 203.05 | 1,971.7 | 221.63 |
| 46 | — | 10.68 | 7.18 | 1,935.0 | 217.50 | 2,112.0 | 237.40 |
| 48 | 1 7/8 | 11.58 | 7.78 | 2,115.0 | 237.74 | 2,309.0 | 259.54 |
| 50 | — | 12.61 | 8.48 | 2,297.0 | 258.19 | 2,507.0 | 281.80 |
| — | 2 | 12.99 | 8.73 | 2,371.0 | 266.51 | 2,587.9 | 290.89 |
| 52 | — | 13.61 | 9.14 | 2,486.0 | 279.44 | 2,713.0 | 304.95 |
| 54 | 2 1/8 | 14.70 | 9.88 | 2,695.0 | 302.93 | 2,941.0 | 330.58 |
| 56 | — | 15.81 | 10.62 | 2,879.0 | 323.61 | 3,142.0 | 353.17 |
Tons are US tons of 2,000 lbs. 1960 and 2160 N/mm² are the wire tensile grades; both are stocked to order. Metric and imperial columns are the same rope, not two products.
