Cargo Control

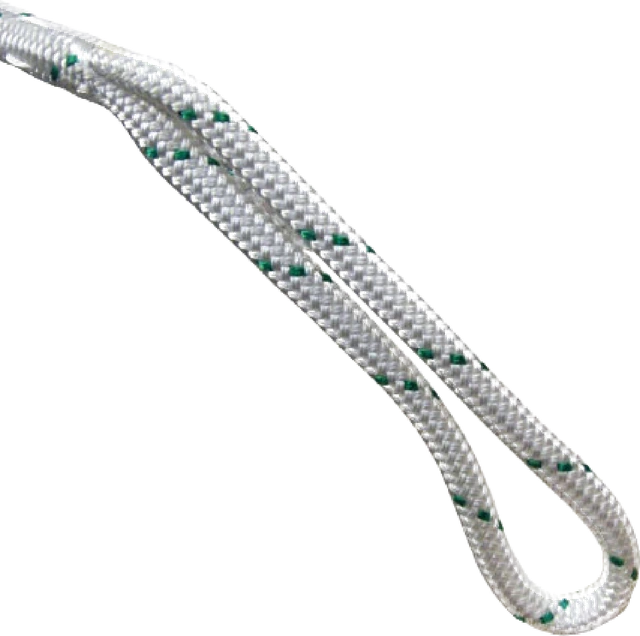

High force composite double braid with hand spliced eyes on both ends, for pulling cable through conduit. Low-stretch polyester, which is the point: a rope that does not store much energy will not snap back across a vault when the load comes off it. Built to a 4:1 tensile standard.
It comes on a heavy-duty Amish wood spool so it feeds off a cable pull stand without snarling, and the cover is slick enough to slide through rough conduit and easy enough on the hands to pull by hand when you have to. Compatible with most pulling machines. Cable lubricant is worth using in high-traction runs.
Specification
- Double braided polyester
- Hand spliced eyes both ends
- Low stretch — no snap-back
- 4:1 tensile standard
- Heavy-duty wood spool
Good for
- Cable pulling through conduit
- Use with most pulling machines
- Long runs where a rope has to slide
- Not overhead lifting
Specifications
Tap Add on any line to build a quote list.
| Stock No. | Size (in.) | Standard Length (ft.) | Breaking Strength (lbs.) | Weight per Reel (lbs.) | Quote |
|---|---|---|---|---|---|
| 1900-5030 | 1/2 | 300 | 2,510 | 22.8 | |
| 1900-5020 | 1/2 | 600 | 2,510 | 45.6 | |
| 1900-5015 | 1/2 | 1,200 | 2,510 | 91.2 | |
| 1900-5050 | 9/16 | 300 | 3,070 | 28.5 | |
| 1900-5040 | 9/16 | 600 | 3,070 | 57.0 | |
| 1900-5035 | 9/16 | 1,200 | 3,070 | 114.0 | |
| 1900-5070 | 5/8 | 300 | 3,830 | 36.0 | |
| 1900-5060 | 5/8 | 600 | 3,830 | 72.0 | |
| 1900-5055 | 5/8 | 1,200 | 3,830 | 144.0 | |
| 1900-5090 | 3/4 | 300 | 6,430 | 50.1 | |
| 1900-5080 | 3/4 | 600 | 6,430 | 100.2 | |
| 1900-5075 | 3/4 | 1,200 | 6,430 | 200.4 | |
| 1900-5110 | 7/8 | 300 | 7,535 | 71.1 | |
| 1900-5100 | 7/8 | 600 | 7,535 | 142.2 | |
| 1900-5095 | 7/8 | 1,200 | 7,535 | 284.4 | |
| 1900-5130 | 1 | 300 | 10,050 | 93.0 | |
| 1900-5120 | 1 | 600 | 10,050 | 186.0 | |
| 1900-5115 | 1 | 1,200 | 10,050 | 372.0 | |
| 1900-5145 | 1 1/8 | 300 | 12,525 | 108.3 | |
| 1900-5140 | 1 1/8 | 600 | 12,525 | 216.6 | |
| 1900-5135 | 1 1/8 | 1,200 | 12,525 | 433.2 |
Breaking strength is shown; the rope is built to a 4:1 standard, so the safe pulling tension is a quarter of the figure in the table. The printed catalog gives the same number under both headings — use the quarter.
This is utility and pulling rope. None of it is rated for overhead lifting — if the job is a lift rather than a pull or a tie-down, call us and we will put you on a rated sling instead. Cut to length from the reel in Hatfield.
Looking after a rope
Retire it when
- The outer fibres are cut, pulled or badly fuzzed
- There is a soft spot, a flat spot, or a change in diameter
- The lay has opened up or the braid has picked
- It has been shock loaded or run over
- It is glazed, melted or discoloured by heat or chemicals
- A natural fibre rope smells of mildew or powders inside
In service
- Keep it off sharp edges and use a sleeve where you cannot
- Never stand in line with a rope under tension
- Knots cut the strength of a rope, often by half
- Coil it, do not kink it, and store it dry and out of the sun
- Never use it overhead as a sling
