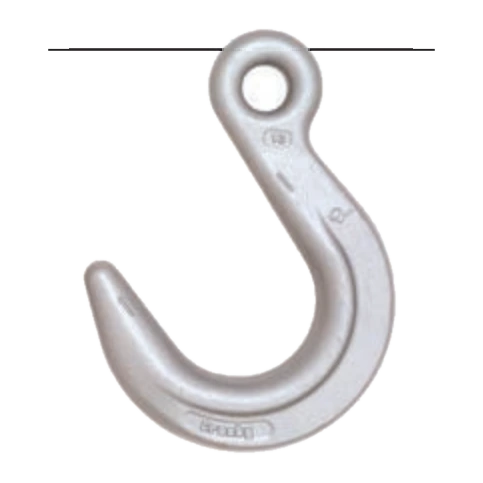

A foundry hook has a wide, deep throat and no latch, for lifting shapes you cannot get a latched hook around — ladle trunnions, castings, pipe, anything hot or awkward.
Eye attachment, for a coupling link. Same tip-loading allowance at a reduced working load limit.
Features
- Forged Alloy Steel - Quenched and Tempered.
- Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
- Suitable for use with Grade 100 and Grade 80 chain.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Hook can be tip loaded at the reduced Working Load Limit. Operator must ensure the load is retained properly in the hook.
Specifications
Tap Add on any line to build a quote list.
| Stock Number | Crosby Part Number | Size in Inches | Working Load Limit (lbs.) | Weight Each (lbs.) | Quote |
|---|---|---|---|---|---|
| 1700-1370 | 1026280 | 9/32 (1/4) | 4,300 | 2.40 | |
| 1700-1380 | 1026289 | 3/8 | 8,800 | 4.50 | |
| 1700-1390 | 1026297 | 1/2 | 15,000 | 7.10 | |
| 1700-1400 | 1026306 | 5/8 | 22,600 | 12.20 | |
| 1700-1405 | 1026315 | 3/4 | 35,300 | 19.30 |
