Web Slings
Specifications
Tap Add on any line to build a quote list.

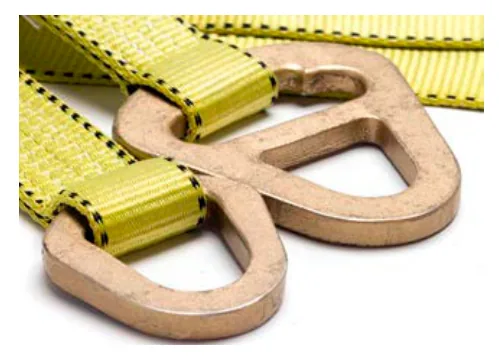

| # of Plys | Part No. | Web Width (Inches) | Rated Capacity (lbs.) Vertical | Choke | Basket | Eye Dimensions (inches) Width | Length | Min. Standard Length (ft) | Quote |
|---|---|---|---|---|---|---|---|---|---|
| 1 | RE1-902 | 2 | 4,600 | 3,680 | 9,200 | 1 | 9 | 3 | |
| — | RE1-903 | 3 | 6,900 | 5,520 | 13,800 | 1-1/2 | 12 | 4 | |
| — | RE1-904 | 4 | 8,600 | 6,880 | 17,200 | 1 | 12 | 4 | |
| — | RE1-906 | 6 | 12,000 | 9,600 | 24,000 | 1-1/2 | 14 | 6 | |
| 2 | RE2-902 | 2 | 7,700 | 6,160 | 15,400 | 1 | 12 | 3 | |
| — | RE2-903 | 3 | 11,600 | 9,280 | 23,200 | 1-1/2 | 12 | 4 | |
| — | RE2-904 | 4 | 14,500 | 11,600 | 29,000 | 2 | 18 | 6 | |
| — | RE2-906 | 6 | 17,400 | 13,920 | 34,800 | 1-1/2 | 18 | 6 |
| # of Plys | Part Number | Web Width (Inches) | Rated Capacity (lbs.) Vertical | Choke | Basket | Min. Standard Length (ft) | Quote |
|---|---|---|---|---|---|---|---|
| 1 | TC1-902 | 2 | 3,200 | 2,500 | 6,400 | 3 | |
| — | TC1-903 | 3 | 4,800 | 3,800 | 9,600 | 3 | |
| — | TC1-904 | 4 | 6,400 | 5,000 | 12,800 | 3 | |
| — | TC1-906 | 6 | 9,600 | 7,600 | 19,200 | 3 | |
| 2 | TC2-902 | 2 | 6,400 | 5,000 | 12,800 | 3 | |
| — | TC2-903 | 3 | 8,900 | 7,200 | 17,800 | 3 | |
| — | TC2-904 | 4 | 12,000 | 9,600 | 24,000 | 3 | |
| — | TC2-906 | 6 | 17,000 | 13,000 | 34,000 | 3 |
