Chain & Accessories
A master link is the single ring at the top of a sling — the one part that goes over the crane hook and carries every leg below it.

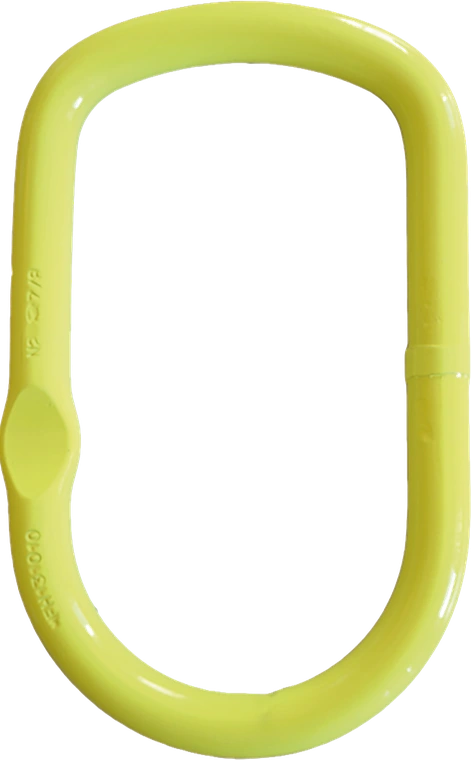

The MFH is the GrabIQ oblong with an enlarged bail, for hooks too big to fit the standard MF.
Features
- Designed for use with CL, CLD, CG and CGD. 3- and 4-leg chain slings require CLD / CGD.
- Grade 100.
- Forged Alloy Steel.
- Individually Proof Tested.
Specifications
Tap Add on any line to build a quote list.
| Model | Trade Size (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Quote | ||
|---|---|---|---|---|---|---|
| 1 Leg Slings | 2 Leg Slings | 3/4 Leg Slings | ||||
| MFH-1310-10 | 7/8 | 5,700 | – | – | 4.2 | |
| MFH-1310-10 | 7/8 | 8,800 | 9,900 | – | 4.2 | |
| MFH-1310-10 | 7/8 | 15,000 | 15,200 | 14,800 | 4.2 | |
| MFH-1613-10 | 1 | 22,600 | 26,000 | 22,900 | 7.1 | |
| MFH-2016-10 | 1 1/4 | – | 39,100 | 39,000 | 10.1 | |
| MFH-2220-10 | 1 1/2 | – | – | 58,700 | 19.0 | |
