Chain & Accessories
A grab hook shortens a chain leg. You drop a link into the throat and the hook grips it, so one sling covers a range of lengths instead of hanging slack over a short load.

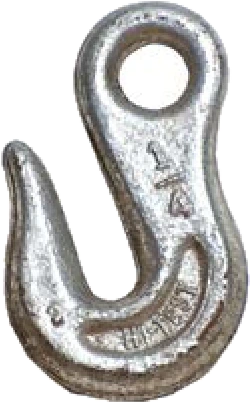

Grade 43 grab hook with an eye, for hanging off a link.
Features
- Hooks are heat treated and tempered.
- Design factor 4:1 when used with Grade 30.
- Design factor 3:1 when used with Grade 43.
- When using these hooks with Grade 30 chain, the assembly must be rated to the working load limit of the chain.
- Hook embossed with trace code providing traceability through manufacturing and testing process to heat of steel.
- Zinc plated finish.
- Not to be used for overhead lifting.
Specifications
Tap Add on any line to build a quote list.
| Stock Number | Size in Inches | Working Load Limit (lbs.) | Weight Each (lbs.) | Quote |
|---|---|---|---|---|
| 1700-390 | 1/4 | 2,600 | 0.30 | |
| 1700-400 | 5/16 | 3,900 | 0.56 | |
| 1700-410 | 3/8 | 5,400 | 0.87 | |
| 1700-430 | 1/2 | 9,200 | 2.17 | |
| 1700-440 | 5/8 | 13,000 | 3.89 |
