Chain & Accessories

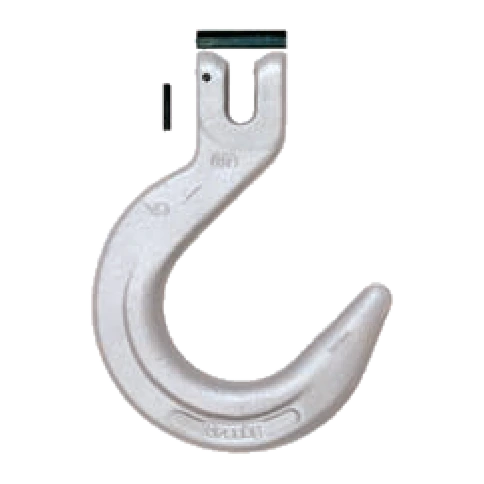

A foundry hook has a wide, deep throat and no latch, for lifting shapes you cannot get a latched hook around — ladle trunnions, castings, pipe, anything hot or awkward.
Clevis attachment, straight to the chain. It can be tip loaded at a reduced working load limit, but only if you can keep the load on the hook.
Features
- Forged Alloy Steel - Quenched and Tempered.
- Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
- Suitable for use with Grade 100 and Grade 80 chain.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Hook can be tip loaded at the reduced Working Load Limit. Operator must ensure the load is retained properly in the hook.
Specifications
Tap Add on any line to build a quote list.
| Stock Number | Crosby Part Number | Size in Inches | Working Load Limit (lbs.) | Weight Each (lbs.) | Quote |
|---|---|---|---|---|---|
| 1700-1340 | 1049907 | 9/32 (1/4) | 4,300 | 2.10 | |
| 1700-1350 | 1049916 | 3/8 | 8,800 | 4.29 | |
| 1700-1360 | 1049925 | 1/2 | 15,000 | 7.93 | |
| 1700-1365 | 1049934 | 5/8 | 22,600 | 14.2 | |
| — | 1049943 | 3/4 | 35,300 | 24.7 |
Need a price or a lead time?
Most stocked items ship the same day from Hatfield. Call and we’ll confirm what’s on the shelf.
